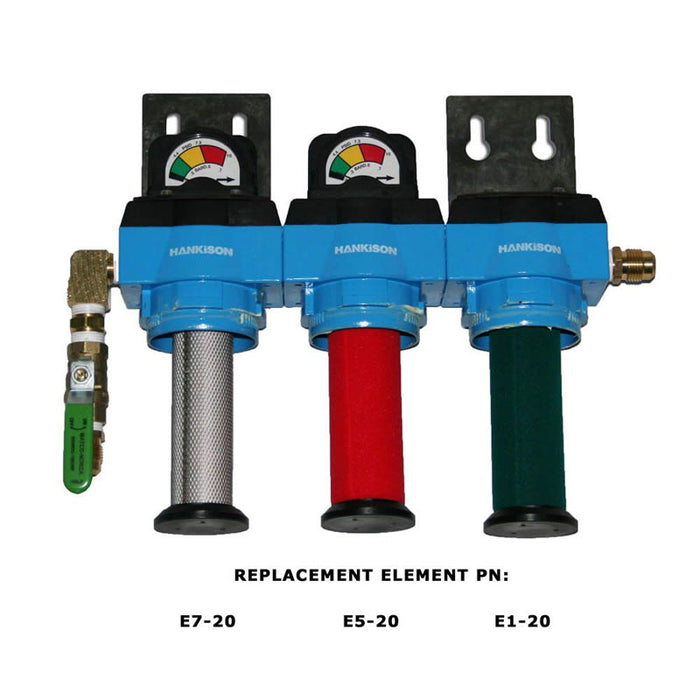

Three Stage SPX Hankison HF 20 Series Filter Package

The low pressure SPX Hankison HF 20 series filter package includes three stage filtration for up to 60 SCFM (1699 L/min) flow at 100 psi (7 bar). Comes equipped with a #10 SAE inlet fitting, on/off ball valve, and a #10 SAE fitting for a diver's hose. It is recommended for the Quincy 325 and Champion R15 compressor pumps. When used properly this filter pack removes moisture, 99.9999+% of particles 0.01 micron or larger, and oil vapor down to <0.003 ppm/w. Various options, including an aluminum frame (SKU 6063.2-FR), are available with this package at an additional cost.

Systems have a maximum operating pressure of 200 psi (14 bar).

Performance Data

ISO performance data of the three-stage HF Series filter housing when configured with Grade 1 (Oil Vapor Removal), Grade 5 (High Efficiency Oil Removal), and Grade 7 (Air Line) filter elements:

E1-20 Element

∙ Removes 99.9999+% of solids 0.01 micron and larger
∙ Remaining oil content <0.003 ppm/w (as a vapor)

E5-20 Element

∙ 99.999+% of solids 0.01 micron and larger
∙ Remaining oil content <0.008 ppm/w

E7-20 Element
