KM 37SS BlowApart

Name: KM 37SS BlowApart
Brand: Kirby Morgan
Availability: InStock

by Kirby Morgan

SKU

$0.00 - $0.00

$0.00

$0.00 - $0.00

$0.00

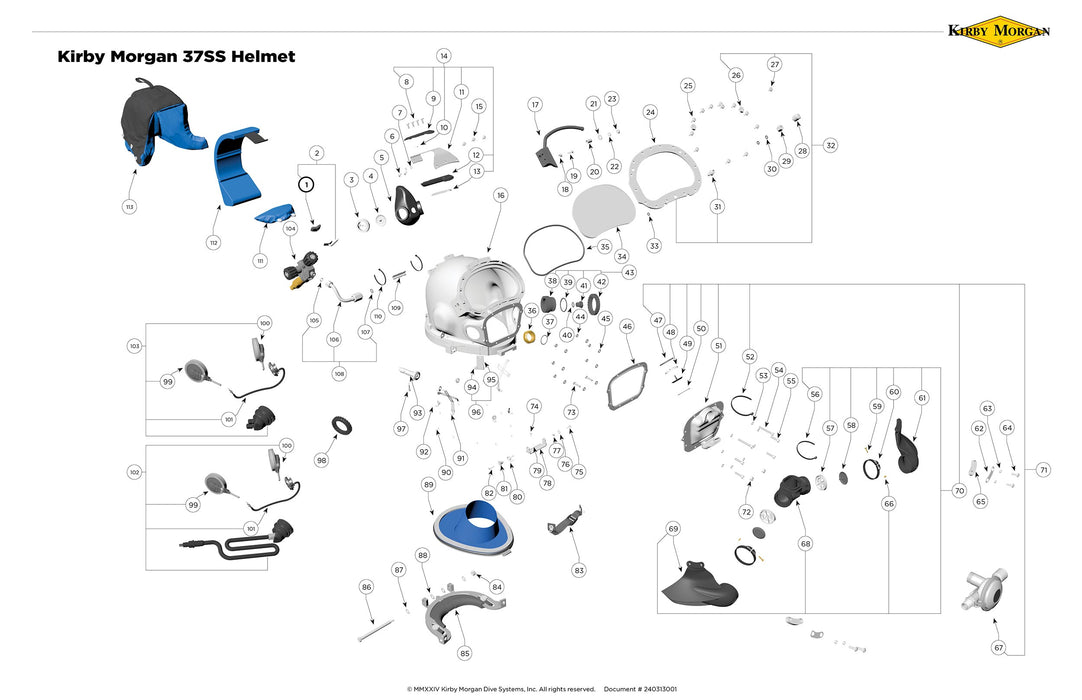

KM 37SS Blowapart

Click the corresponding item from the parts list below to order:

Location #	Part #	Description
1	DSI 510-575	Nose Block Pad
2	DSI 545-015	Nose Block Device, Includes location #1
3	DSI 520-020	Valve Body
4	DSI 510-550	Valve, Oral Nasal
5	DSI 510-747	Oral Nasal Mask
6	DSI 530-058	Screw
7	DSI 330-405	Washer, Lock
8	DSI 530-078	Screw
9	DSI 520-265	Top
10	DSI 530-527	Washer
11	DSI 540-579	Handle, Helmet, KM 37SS
12	DSI 510-266	Grip
13	DSI 550-285	Mount Bar
14	DSI 505-765	Handle Assembly, KM 37SS
15	DSI 530-059	Screw
16	DSI 560-517	Helmet Shell, Stainless Steel
17	DSI 505-753	Airtrain Assembly, Stainless Helmet
18	DSI 550-571	Sleeve
19	DSI 530-083	Screw
20	DSI 550-574	Sleeve
21	DSI 530-535	Washer
22	DSI 530-415	Washer, Lock
23	DSI 530-317	Nut
24	DSI 540-563	Port Retainer
25	DSI 530-059	Screw
26	DSI 550-566	Adapter
27	DSI 530-052	Screw
28	DSI 550-062	Knob, Nose Block
29	DSI 555-180	Packing Nut
30	DSI 510-008	O-ring
31	DSI 550-577	Nose Block Guide
32	DSI 505-738	Port Retainer Assembly
33	DSI 510-010	O-ring
34	DSI 520-004	Face Port
35	DSI 510-260	O-ring, View Port
36	DSI 550-081	Nut, Regulator Mount
37	DSI 510-490	O-ring
38	DSI 550-097	Large Port Plug Body
39	DSI 510-029	O-ring
40	DSI 510-481	O-ring
41	DSI 550-043	Plug
42	DSI 320-026	Comm. Mount Nut
43	DSI 505-089	Large Port Plug Assembly, Includes location #s 36-40
44	DSI 530-145	Nut
45	DSI 530-527	Washer
46	DSI 510-403	Gasket, Pod
47	DSI 540-012	Retainer Ring
48	DSI 520-022	Exhaust Valve Insert
49	DSI 510-776	Exhaust Valve
50	DSI 510-019	O-ring
51	DSI 560-556	Regulator Mount Pod, 350
52	DSI 520-042	Tie Wrap
53	DSI 430-134	Washer
54	DSI 530-089	Screw
55	DSI 530-086	Screw
56	DSI 520-042	Tie Wrap
57	DSI 520-200	Whisker Exhaust Valve Insert
58	DSI 510-776	Exhaust Valve
59	DSI 530-008	Brass Screw
60	DSI 520-118	Tri/Quad Valve Whisker Clamp
61	DSI 510-787	Port Whisker Wing
62	DSI 540-015	Kidney Plate
63	DSI 550-586	Spacer, Whisker
64	DSI 530-070	Screw
65	DSI 560-300	Zinc Whisker Anode
66	DSI 530-009	Brass Nut
67	DSI 505-069	Regulator Assembly, 1" Mount Tube, Order P/N DSI 525-771
68	DSI 510-760	Quad Valve Exhaust Main Body
69	DSI 510-786	Starboard Whisker Wing
70	DSI 505-730	Quad Valve Exhaust Assembly
71	DSI 505-758	350 Regulator Pod Assembly, Also includes location #s 34 and 35, Order P/N DSI 525-385
72	DSI 530-145	Lock Nut
73	DSI 530-086	Screw
74	DSI 530-032	Screw
75	DSI 530-035	Screw
76	DSI 530-546	Washer for Swing Catch
77	DSI 550-061	Spacer
78	DSI 540-086	Swing Catch
79	DSI 520-167	Teflon® Washer for Swing Catch
80	DSI 535-825	Spring, Swing Catch
81	DSI 550-122	Spring Spacer
82	DSI 530-045	Screw
83	DSI 505-748	Chin Strap Assembly w/ Snaps, SS
84	DSI 530-028	Lock Nut
85	DSI 505-755	Locking Collar Assembly, SS
86	DSI 530-027	Hinge Bolt
87	DSI 520-165	Washer
88	DSI 530-545	Washer
89	DSI 505-746	Neck RIng Assembly, Medium, SS
90	DSI 530-037	Screw
91	DSI 505-742	Earphone Retainer Assembly, SS
92	DSI 505-740	Snap Assembly, SS
93	DSI 505-110	Sealed Pull Pin Assembly
94	DSI 530-059	Screw
95	DSI 540-039	Front Stand Off, Order DSI 525-116
96	DSI 525-116	Front Stand Off Kit (2 each of Loc. #91 and 92)
97	DSI 530-015	Screw
98	DSI 320-026	Comm. Mount Nut
99	DSI 515-018	Earphone, Right, 9"
100	DSI 515-019	Earphone, Left, 15.5"
101	DSI 515-029	Microphone Assembly
102	DSI 515-024	Comm. Assembly w/ MWP
103	DSI 515-023	Comm. Assembly w/Posts
104	DSI 505-732	Side Block Assembly
105	DSI 520-033	O-ring, Teflon®
106	DSI 555-154	Bent Tube Assembly, No O-rings (Purchase DSI 555-155)
107	DSI 510-012	O-ring
108	DSI 555-155	Bent Tube Assembly w/O-rings
109	DSI 560-304	Zinc Sleeve Anode
110	DSI 520-038	Tie Wrap
111	DSI 510-683	Chin Cushion Assembly
	DSI 510-639	Chin Cushion Bag
112	DSI 510-837	Head Cushion Foam Spacer Assembly (Order P/N DSI 525-745)
	DSI 510-836	Head Cushion Foam Spacer Bag
113	DSI 510-754	Head Cushion Assembly
	DSI 510-722	Head Cushion Bag
