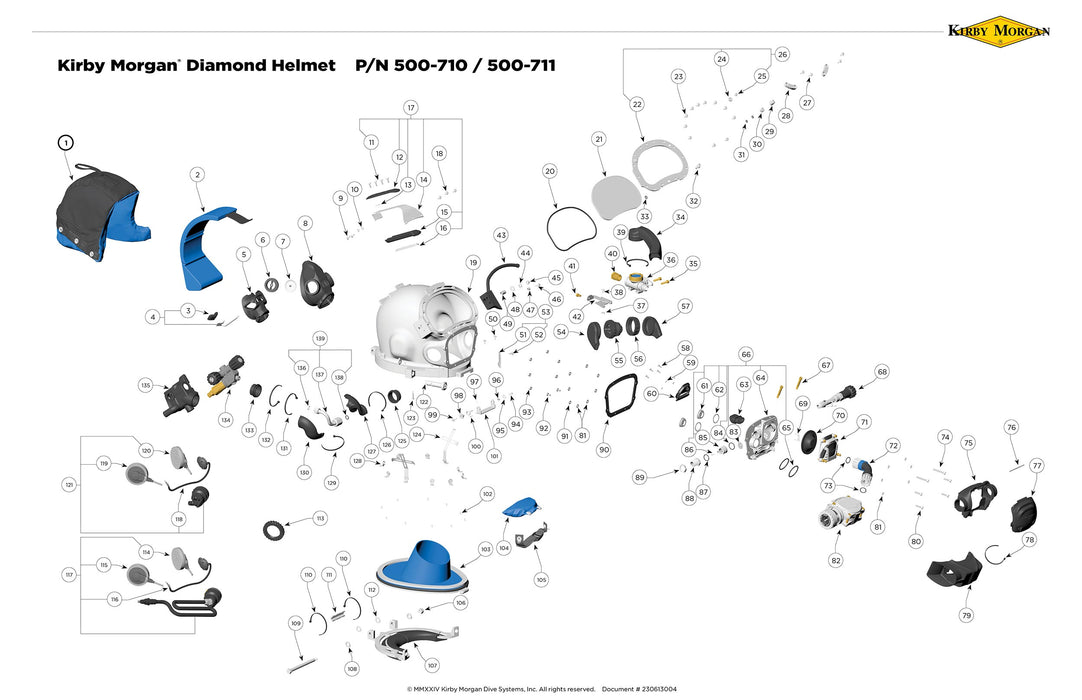

KM Diamond BlowApart
Click the corresponding item from the parts list below to order:
Surface Bypass Valve Assembly P/N 505-375
|
Location # |
Part # |
Description |
|
2 |
550-390 |
Q.D. Adapter (optional) |
|
3 |
310-022 |
O-ring |
|
4 |
550-388 |
Ball Seal |
|
5 |
550-389 |
Control Ball |
|
6 |
550-388 |
Ball Seal |
|
7 |
550-391 |
Ball Control Stem |
|
8 |
530-179 |
Stem Washer |
|
9 |
550-385 |
Surface Bypass Valve Body |
|
10 |
510-026 |
O-ring |
|
11 |
550-386 |
Exhaust Port Seal |
|
12 |
510-026 |
O-ring |
|
13 |
550-374 |
Butterfly Valve Seat |
|
14 |
510-261 |
O-ring |
|
15 |
510-699 |
Butterfly Valve Sat. |
|
16 |
550-387 |
Retaining Cap |
|
17 |
510-012 |
O-ring |
|
18 |
530-180 |
Washer |
|
19 |
560-139 |
Control Handle |
|
20 |
530-182 |
Washer |
|
21 |
535-006 |
Spring |
|
22 |
550-395 |
Spring Nut |
|
23 |
510-017 |
O-ring |
|
24 |
550-618 |
Adapter Nipple |
Water Purge Assembly P/N 505-378
|
Location # |
Part # |
Description |
|
1 |
550-383 |
Main Body |
|
2 |
510-029 |
O-ring |
|
3 |
910-101 |
O-ring |
|
4 |
520-252 |
Valve Seat Insert |
|
5 |
510-697 |
Exhaust Valve |
|
6 |
910-101 |
O-ring |
|
7 |
550-082 |
Valve Cap |
|
8 |
550-381 |
Compression Sleeve |
|
9 |
535-005 |
Spring |
|
10 |
550-645 |
Water Dump Spring Adjuster, Insert |
|
11 |
550-382 |
Retaining Cap |
|
12 |
540-014 |
Retaining Ring |
Diamond Main Tube Assembly P/N 505-752 & Regulator Cover Assembly P/N 505-373
|
Location # |
Part # |
Description |
|
1 |
550-163 |
Adjustable Nipple |
|
2 |
510-010 |
O-ring |
|
3 |
220-056 |
Lever Bearing Clip |
|
4 |
510-015 |
O-ring |
|
5 |
550-179 |
Diamond Main Tube |
|
6 |
210-060 |
Valve Seat |
|
7 |
220-050SS |
Inlet Valve, Stainless Steel Tube |
|
8 |
205-020 |
Inlet Valve Assembly |
|
9 |
235-015 |
Spring |
|
10 |
210-055 |
O-ring, Balanced |
|
11 |
550-549 |
Balance Spacer |
|
12 |
510-018 |
O-ring |
|
13 |
550-643 |
Transfer Pin |
|
14 |
550-567 |
Adjustment Packing Nut |
|
15 |
510-012 |
O-ring |
|
16 |
550-640 |
Shaft Bearing Washer |
|
17 |
550-158 |
Adjustment Shaft |
|
18 |
520-517 |
Flex Knob |
|
19 |
505-088 |
Adjustment (Flex) Knob/Packing Nut Assembly (Loc. #13 NOT Included) |
|
20 |
240-008 |
Lever Arm |
|
21 |
535-010 |
Assist Spring |
|
22 |
560-558 |
Regulator Cover Frame |
|
23 |
510-788 |
Regulator Purge Cover |
|
24 |
540-053 |
Cover Guard |
|
25 |
530-518 |
Washer |
|
26 |
330-405 |
Lock Washer |
|
27 |
530-099 |
Cover Retainer Screw |
|
28 |
550-074 |
Bishop Pin |
|
29 |
505-373 |
Regulator Cover Assembly |
Diamond Exhaust Assembly P/N 505-400
|
Location # |
Part # |
Description |
|
2 |
830-015 |
Screw |
|
3 |
550-631 |
Control Knob |
|
4 |
510-128 |
O-ring |
|
5 |
505-135 |
Spring Adjuster |
|
6 |
535-403 |
Overpressure Spring |
|
7 |
550-635 |
Retainer Housing |
|
8 |
535-401 |
Puck Spring |
|
9 |
505-366 |
Puck w/Pin |
|
10 |
510-779 |
Puck Exhaust Valve |
|
11 |
550-576 |
Puck Seat Insert |
|
12 |
910-103 |
O-ring, Inner Ring, Exhaust |
|
13 |
540-012 |
Retainer Ring |
|
14 |
510-696 |
Exhaust Valve |
|
15 |
520-022 |
Exhaust Valve Insert |
|
16 |
550-590 |
Mount Block |
|
17 |
510-019 |
O-ring |
|
18 |
540-013 |
Housing Retaining Ring |
|
19 |
545-300 |
Remote Exhaust Main Body Assembly |
|
20 |
510-404 |
1st Stage Diamond Diaphragm Assembly |
|
21 |
550-610 |
Top Diaphragm Cover |
|
22 |
530-309 |
Cap Screw |
|
23 |
550-618 |
Adapter Outlet |
|
24 |
510-017 |
O-ring |
|
25 |
510-026 |
O-ring |
|
26 |
550-165 |
Valve Seat Insert-8 |
|
27 |
510-023 |
2nd Stage O-ring Seal |
|
28 |
505-410 |
Diamond Exhaust Sub-Assembly |
|
29 |
535-400 |
2nd Stage Diaphragm Spring |
|
30 |
510-405 |
2nd Stage Diamond Diaphragm Assembly |
|
31 |
545-310 |
Bottom Diaphragm Cover Assembly |
