3-Stage Filtration System (BT BT3-ASSY)

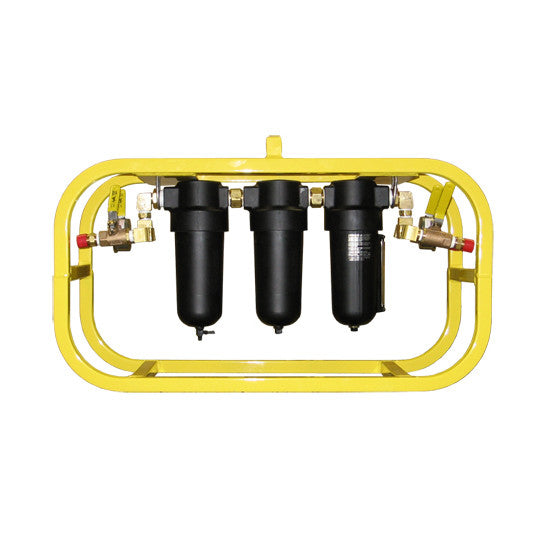

The Model BT3 filtration system consists of three canister assemblies. The canisters are made of powder-coated die cast aluminum with 1” flow ports. The first and second stage canisters are fitted with auto drains and the third has a manual drain. The unit is plumbed with brass fittings, stainless steel hardware, and stainless steel gauges. The assembly is mounted in an aluminum frame. The unit is shipped ready to use with #10 JIC male fittings on the inlet and outlet valves.
This 3-Stage filtration unit is housed in powder-coated aluminum frame for ease of mobility.
Features
— Brass Plumbing and Stainless Steel Hardware
— #10 JIC Male hose adapters
— Inlet/outlet gauges – 0-300 Stainless steel housing
— 1/2″ Brass Ball Valves
Element Specifications
First Stage: 5311-01
- Particulate Filter (5 micron)
Optional: 5311-03 (40 micron coarse bronze filter)
Second Stage: 5351-03
- Oil Removal
Third Stage: 665-70
- Vapor and Odor
Specs
Size — 30″L x 12″W x 16″H
Weight — 32 lbs
