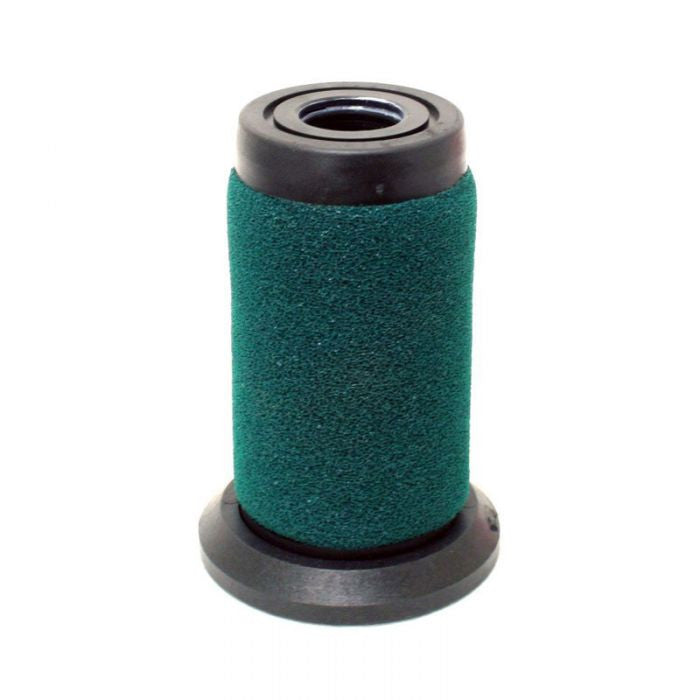

Hankison E1-16 Filter Element

Hankison E1-16 Filter Element

by Hankison
SKU NU E1-16
$147.60 USD - $147.60 USD
$147.60 USD
$147.60 USD - $147.60 USD
$147.60 USD

Grade 1 Filter: Oil Vapor Removal. Removes oil and hydrocarbon vapors normally adsorbed by activated carbon. Removes solid particulate to 0.01 microns with a 0.003 ppm w/w maximum remaining oil content (established in accordance with CAGI standard ADF500 and is based on 100°F inlet temperature). Designed for a 1000 hour life at the rated conditions. Multiple layers of fiber media and screen remove larger particles, pre-filtering the air in the first stage of filtration. In the second stage, multiple layers of bonded, blended fiber media is utilized for fine coalescence. Multiple layers of fine media prevent particle migration.

Features
Withstands temperatures to 150°F (66°C)
Push-on elements provide simple replacement
Piston type seals keeps unfiltered air from bypassing element
Stainless steel, corrosion resistant inner and outer core
> Low resistance to flow
> Seam welded durability
Matrix blended fiber media
> Large, effective surface area ensures high efficiencies and minimizes pressure drop
Coated, closed cell foam sleeve
> Resists chemical attack from oils and acids
> Ensures high efficiencies by preventing re-entrainment of coalesced liquids
Chemically resistant end caps
Silicone free
Specs
Model Size 16
Filter Element Grade 1: Oil Vapor Removal
Model E1-16
Stainless Steel Element NO
Flow Rating 35 SCFM
Design Temp 150°F
Weight 0.3 lbs

Grade 1 Filter: Oil Vapor Removal. Removes oil and hydrocarbon vapors normally adsorbed by activated carbon. Removes solid particulate to 0.01 microns with a 0.003 ppm w/w maximum remaining oil content (established in accordance with CAGI standard ADF500 and is based on 100°F inlet temperature). Designed for a 1000 hour life at the rated conditions. Multiple layers of fiber media and screen remove larger particles, pre-filtering the air in the first stage of filtration. In the second stage, multiple layers of bonded, blended fiber media is utilized for fine coalescence. Multiple layers of fine media prevent particle migration.

Features
Withstands temperatures to 150°F (66°C)
Push-on elements provide simple replacement
Piston type seals keeps unfiltered air from bypassing element
Stainless steel, corrosion resistant inner and outer core
> Low resistance to flow
> Seam welded durability
Matrix blended fiber media
> Large, effective surface area ensures high efficiencies and minimizes pressure drop
Coated, closed cell foam sleeve
> Resists chemical attack from oils and acids
> Ensures high efficiencies by preventing re-entrainment of coalesced liquids
Chemically resistant end caps
Silicone free
Specs
Model Size 16
Filter Element Grade 1: Oil Vapor Removal
Model E1-16
Stainless Steel Element NO
Flow Rating 35 SCFM
Design Temp 150°F
Weight 0.3 lbs
