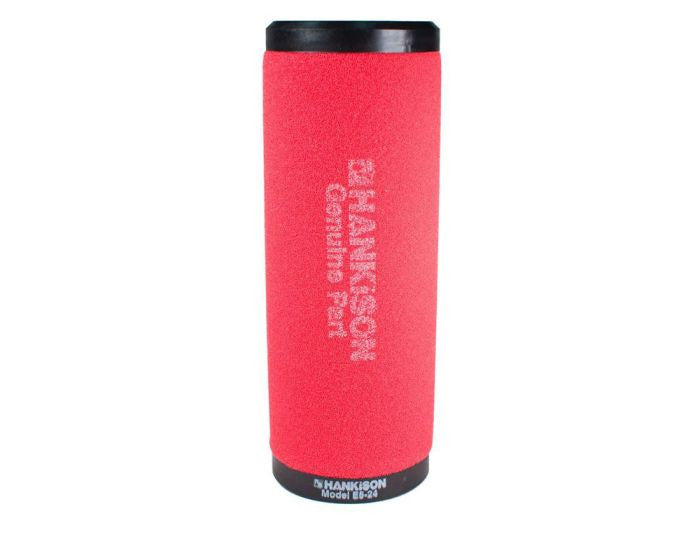

Hankison E5-24 Filter Element

SKU NU E5-24
Original price $248.40 USD - Original price $248.40 USD
Original price
$248.40 USD
$248.40 USD - $248.40 USD
Current price $248.40 USD

Grade 5 Filter: High Efficiency Oil Removal. Designed for coalescing fine water and oil aerosols, this filter removes solid particulate to 0.01 microns with a 0.008 ppm w/w maximum remaining oil content (established in accordance with CAGI standard ADF400 and is based on 100°F inlet temperature). The first stage of filtration uses multiple layers of fiber media and screen to remove larger particles, pre-filtering the air, while the second stage utilizes multiple layers of bonded, blended fiber media for fine coalescence.

Features
Withstands temperatures to 150°F (66°C)
Push-on elements provide simple replacement
Piston type seals keeps unfiltered air from bypassing element
Stainless steel, corrosion resistant inner and outer core
> Low resistance to flow
> Seam welded durability
Matrix blended fiber media
> Large, effective surface area ensures high efficiencies and minimizes pressure drop
Coated, closed cell foam sleeve
> Resists chemical attack from oils and acids
> Ensures high efficiencies by preventing re-entrainment of coalesced liquids
Chemically resistant end caps
Silicone free
Specs
Model Size 24
Filter Element Grade 5: High Efficiency Oil Removal
Model E5-24
Stainless Steel Element NO
Flow Rating 100 SCFM
Design Temp 150°F
Weight 0.6 lbs
