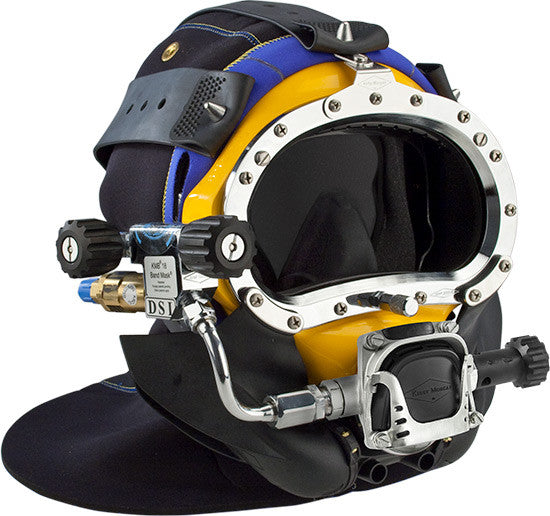

Kirby Morgan BandMask KMB 18
The Fully Tested And Certified BandMask® 18 May Be Used In Mixed Gas Diving As Well As Shallow Water Air Diving.
The SuperFlow® adjustable demand regulator provide low inhalation resistance and high gas flow letting the diver breathe easier and work harder. This mask comes standard with the large tube SuperFlow® 350 regulator.
The Side Block Assembly of both the BandMask® 18 and 28 receives the umbilical over the shoulder in the B configuration. They both come standard with the Tri-Valve® exhaust system, and the new BandMask® BandKeepers®.
The Tri-Valve® Exhaust System has less breathing resistance than the older single valve exhaust. It retrofits to all previous Kirby Morgan BandMasks®. The BandMask® BandKeepers®, coupled with the redesigned hood, not only prevent any separation of the hood from the mask, but also make it impossible for the bands to separate from the mask.
The communications connections can be either a male waterproof "plug in" type or bare wire posts.The BandMask® 28 is very similar to the BandMask® 18. Many parts on the BandMask® 18B are interchangeable with the BandMask® 28B. The major difference between the 18 and 28 is the material of the mask frame. The BandMask® 18 has a hand laid fiberglass frame (yellow) while the BandMask® 28B frame is an extremely durable injection molded plastic (black). The relative ease of production of the BandMask® 28 frame allows for a lower cost and quicker delivery of this mask. Other differences include: 1) The main exhaust body of the BandMask® 28 is part of the frame itself and uses a #545-041 main exhaust cover 2) no comfort insert is required on the "28" 3) the face ports for the 18 and the 28 differ slightly in size.
The 455 Balanced regulator sets a milestone in surface supplied breathing performance. The 455 regulator body is made of 316 stainless steel, as are all its other metallic components. The OPTIONAL SuperFlow® 350 regulator is a proven design that provides excellent breathing characteristics over a wide range of depths. The 455 Regulator is standard on this helmet. The 350-Regulator is available as an option for an additional cost.
Features
455 Balanced Regulator- Sets a milestone in surface supplied breathing performance. The 455 regulator body is made of 316 stainless steel, as are all its other metallic components.
SuperFlow® 350 Regulator - This all metal, fully adjustable, Commercial Rated™ demand regulator provides easy breathing. Both the 455 & 350 provide excellent performance with low pressure compressors.
Air Train - The air train diffuses incoming breathing air/gas onto the face port/lens to defog and ventilate.
Communications - Communications are “non-modular” (like the SuperLite 17B helmet). When ordered with male waterproof connector (for 4 wire communications), the mask also includes bare wire posts. When ordered with bare wire posts (for 2 wire communications), the port for the mwp connector is plugged.
Defogging Steady Flow Valve - Provides an additional flow of gas into the helmet for ventilation and defogging.
Emergency (EGS) Valve - Supplies backup breathing gas to the diver.
Gas Supply Non-Return Valve - Gas Supply Non-Return Valve prevents loss of gas pressure in the event of umbilical damage, preventing a "squeeze".
Head Harness (Spider) - Keeps the mask in place on the divers head. The neoprene rubber spider has adjustment holes for varying the tension of the harness.
Nose Block - Device allows the diver to block the nose to equalize ears.
Side Block - Multi use side block has additional ports built in to provide controlled air flow, if needed.
Silicone Oral Nasal Mask - Made of a superior silicone material which is hypo-allergenic and has a longer work life than latex.
Stainless Steel Bands - Bands hold the Hood/Face seal in place on the mask frame. They also provide the mounting studs for the Head Harness (Spider).
Tri-Valve® Exhaust With Whisker Wings - Retrofits to many previous Kirby Morgan Helmets and BandMasks®, has less breathing resistance than the older single valve exhaust while providing an extremely dry hat. The Tri-Valve® Exhaust is made of a chemical resistant compound.
Specs
Weight - 13.63 lbs
Mask Frame - Fiberglass, polyester resin, polyester gel coat, and carbon fibers Mask Frame
Control Knobs - Polyurethane
Face Port/Lens - Scratch Resistant Polycarbonate
Hood - Neoprene
O-Rings - Buna-N
Recommended Lubricants - Christo-Lube®, Dow Corning® MS4 Silicone Lubricant. Krytox® and Halocarbon® are also acceptable.
Regulator - SuperFlow® 350 Performance. The SuperFlow® 350 regulator on the Kirby Morgan 18 & 28 masks offers high performance. The regulator has been tested at Dive Lab at Panama City, Florida. It meets all current U.S. Navy and European diving standards.
Cage Code - The cage code for identifying KMDSI products for U.S. government purposes is 58366.
CR Standards - These helmets meet or exceed all standards established by Dive Lab of Panama City, Florida, and are CR (Commercially Rated) marked.
Temperature Limitations - Use at water temperatures below 33 °F (1 °C) requires use of hot water shroud (P/N 525-100) and hot water.
Operational Specifications & Limitations - Umbilical minimum I.D. 3/8” (9.5 mm) of not more than two sections, total length not to exceed 600 feet (183m). This mask meets or exceeds all requirements of NPD, Health and Safety, (U.K.), United States Navy, ADCI United States and is CR rated by Dive Lab, Panama City, Fla., USA. Recommended overbottom (OB)gas supply pressure for best performance at depths are calculated by the formula (fsw x 0.445+14.7) + recommended p.s.i. g.
Downloads
KMB 18 Manual & BlowApartSpare Parts Kits
DSI 525-358 Soft Goods Overhaul Kit
DSI 525-367 Soft Goods Kit, w/455 Regulator
DSI 525-309 Regulator Kit
DSI 525-311 Side Block Kit
DSI 525-330 One Way Valve Kit
DSI 525-319 Mask Spares Kit
DSI 525-620 Regulator Tool Kit (included with purchase of new BandMask)
DSI 525-752 Tri-Valve Exhaust Kit
Comms
DSI 515-033 Comms Set (Mic & Earphones Only)
DSI 515-018 Earphone, Right
DSI 515-019 Earphone, Left
DSI 515-029 Microphone Ass’y
Hood & Face Seal
DSI 525-734 Hood & Face Seal (S/S)
DSI 525-735 Hood & Face Seal (S/M)
DSI 525-736 Hood & Face Seal (L/M)
DSI 525-737 Hood & Face Seal (L/L)
DSI 525-505 Face Seal Only (No Hood)
DSI 525-172 Hood & Face Seal with Band Keeper Kit
DSI 525-121 Band Keeper Kit (No Hood)
Hard Shell
DSI 520-026 Hardshell (Black ABS Material)
Misc
DE 255-020 Bail-Out QD Whip, 42”, Brass (Single Shut-off)
DE 255-020DD Bail-Out QD Whip, 42”, Brass (Double Shut-off)
DE 255-025 Bail-Out QD Whip, 42”, S/S (Double Shut-off)
DSI 525-373 BandMasks Anode Kit
DSI 525-403 Weld Lens Ass’y (lens not included)
DSI 525-400 Weld Shield Ass’y (lens not included)
DSI 555-210 Restrictor Adaptor
DSI 500-901 Helmet Bag (included with purchase of new helmet)
DSI 525-100 Hot Water Shroud Kit
