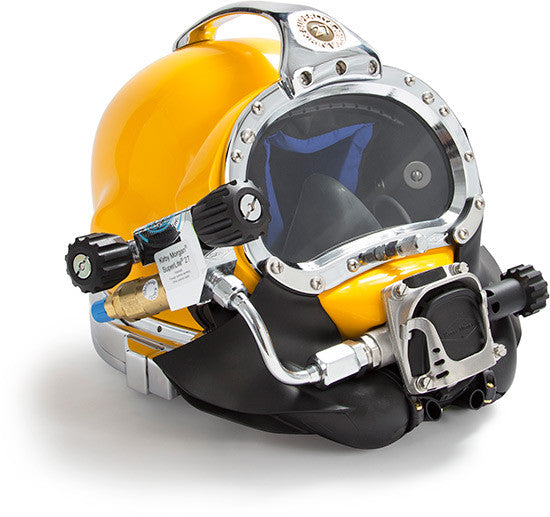

Kirby Morgan SuperLite SL27 Helmet
The SuperLite® 27® Gives The Working Diver A Compact, Reliable And Extremely Comfortable Helmet.
If the diver is looking for the most compact helmet with the “snuggest” fit, the SuperLite® 27® is Kirby Morgan’s smaller unit in our selection of highest quality commercial diving helmets.
The SuperLite® 27® comes standard with the Tri-Valve® Exhaust System which provides exceptionally dry breathing under all conditions, without increasing breathing resistance. Also setting the SuperLite® 27® apart from other helmets is its water dump valve which is mounted on the port side, contributing to the shorter, more compact profile of this helmet.
The 455 Balanced regulator sets a milestone in surface supplied breathing performance. The 455 regulator body is made of 316 stainless steel, as are all its other metallic components. The OPTIONAL SuperFlow® 350 regulator is a proven design that provides excellent breathing characteristics over a wide range of depths. The 455 Regulator is standard on this helmet. The 350-Regulator is available as an option for an additional cost.
Features
455 Balanced Regulator- Sets a milestone in surface supplied breathing performance. The 455 regulator body is made of 316 stainless steel, as are all its other metallic components.
SuperFlow® 350 Regulator - This all metal, fully adjustable, Commercial Rated™ demand regulator provides easy breathing. Both the 455 & 350 provide excellent performance with low pressure compressors.
Air Train - The air train diffuses incoming breathing air/gas onto the face port/lens to defog and ventilate.
Defogging Steady Flow Valve - Provides an additional flow of gas into the helmet for ventilation and defogging.
Emergency (EGS) Valve - Supplies backup breathing gas to the diver.
Fiberglass and Carbon Fiber Reinforced Shell - Kirby Morgan® has over 50 years experience in composite lamination. The helmet shell is hand laid up glass fiber reinforced thermal setting polyester (fiberglass) with carbon fiber reinforcement at key points for added durability. It is light and highly impact resistant, and provides a heat/cold barrier as well as being an excellent electrical nonconductor.
Gas Supply Non-Return Valve - Commercial Rated™, It prevents loss of gas pressure in the event of umbilical damage.
Nose Block Device - Allows the diver to block the nose to equalize ears.
Rapid Change Modular Communications Systems - Because the module is easily removed the helmet, repair or replacement of communications parts is quick and trouble free. It is available with either a male waterproof connector or a bare wire post connection.
Side Block - Multi use side block has additional ports built in to provide controlled air flow, if needed.
Silicone Oral Nasal Mask - Made of a superior silicone material which is hypo-allergenic and has a longer work life than latex.
Top Handle - Handle can be removed without breaking seals, making it quick and easy to attach accessories.
Whisker Wings - Bubble deflecting Whisker wings keep bubbles further from face port and ears, improving visibility and decreasing internal noise.
Specs
Weight - 28.47 lbs
Helmet Shell - Fiberglass, polyester resin, polyester gel coat, and carbon fibers
Control Knobs - Polyurethane
Face Port/Lens - Scratch Resistant Polycarbonate
Neck Dam - Neoprene. Optional latex neck dam available
O-Rings - Buna-N
Head Cushion - Nylon bag filled with #4 Polyester foam
Recommended Lubricants - All helmets and masks are lubricated at the factory with Christo-Lube®. Kirby Morgan recommends Christo-Lube® or Tribolube® for all gas train components. Dow Corning® 111 Silicone or equivalent may be used for helmet and mask components that are used with gas mixtures containing less than 50% oxygen.
Regulator - The SuperFlow® 350 regulator on the SuperLite® 27® offers high performance. The regulator has been tested at Dive Lab at Panama City, Florida. It meets all current U.S. Navy and European diving standards.
Cage Code - The cage code for identifying KMDSI products for U.S. government purposes is 58366.
CR Standards - These helmets meet or exceed all standards established by Dive Lab of Panama City, Florida, and are CR (Commercially Rated) marked.
Temperature Limitations - Use at water temperatures below 33 °F (1 °C) requires use of hot water shroud (P/N 525-100) and hot water.
NOTE
The Hot Water Shroud (Part #525-100) in conjunction with hot water to the diver should be used whenever diving operations are conducted using HEO2 at water temperatures less than 60°F (15.56°C) for the comfort of the diver. KMDSI further recommends that the shroud be used in conjunction with hot water to the diver whenever diving operations are conducted using air or mixed gas, in waters colder than 36°F (2.22°C) to reduce the possibility of demand regulator icing.
Usually the greatest danger of demand regulator icing will be encountered on deck when the surrounding air temperature is less than 32°F (0°C). This effect is primarily due to the refrigeration effect of breathing air pressure reduction, and the addition of moisture from the diver's exhalation coming in contact with the topside air temperature.
If diving where the water temperature is 36°F (2.22°C) or warmer but the topside air temperature is below freezing, (32°F (0°C) icing of the demand regulator is possible. To help eliminate the possibility of freezing on the surface, warm water should be run over the exterior of the demand regulator prior to water entry, if the hot water system is not used.
Only equipment certified and tested according to EN 250/E DIN 58 642 may be used with the SL 27® helmet when conducting diving operations in European EC compliant countries.
The umbilical assembly should be composed of good quality diving hose that meets industry standards. Generally, gas hose will be married to the communications wire, pneumofathometer hose, and strength member in a manner that will allow the strength member to receive all the strain. There are also good quality umbilicals available that are assembled at the factory using a twisted method which does not require marrying. Regardless of the system used, the umbilical is the diver’s life line and should always be of excellent quality and maintained carefully.
Downloads
Accessories
Spare Parts Kits
DSI 525-365 Soft Goods Overhaul Kit
DSI 525-359 Soft Goods Kit, w/455 Regulator
DSI 525-211 Sealed Pull Pin Overhaul Kit (sold to factory trained Tech’s only)
DSI 525-309 Regulator Kit
DSI 525-311 Side Block Kit
DSI 525-330 One Way Valve Kit
DSI 525-333 Helmet Spares Kit
Comms
DSI 515-023 Comms Ass'y w/Post
DSI 515-024 Comms Ass'y w/WPC
DSI 515-033 Comms Set (Mic & Earphones Only)
DSI 515-029 Microphone Ass’y
Neck Dams
DSI 510-678 Latex Neck Dam, Sm-Med
DSI 510-500 Latex Neck Dam, Med-Lrg
DSI 510-502 Neoprene Neck Dam, Small
DSI 510-504 Neoprene Neck Dam, Med
DSI 510-503 Neoprene Neck Dam, Large
DSI 510-687 Neoprene Neck Dam, X-Large
DSI 510-679 Cold Water Neck Dam, Small
DSI 510-680 Cold Water Neck Dam, Medium
DSI 510-681 Cold Water Neck Dam, Large
Neck Rings Ass’y
DSI 510-678/DSI 525-230 Neck Ring Ass'y Latex, Sm-Med
DSI 505-095 Neck Ring Ass’y, Latex, Med-Lrg
DSI 505-094 Neck Ring Ass’y, Neoprene, Small
DSI 505-100 Neck Ring Ass’y, Neoprene, Med
DSI 505-097 Neck Ring Ass’y, Neoprene, Lrg
DSI 505-104 Neck Ring Ass’y, Neoprene, X-Large
DSI 525-230 Dry Suit Neck Ring Kit
Head Cushions
DSI 510-754 Head Cushion (replaced pt# DSI 510-682)
DSI 510-683 Chin Cushion
DSI 510-672 Replacement Foam Kit (for DSI 510-682 & DSI 510-683)
DSI 525-745 Head Cushion Foam Spacer Kit (for DSI 510-682 & DSI 510-521)
DSI 525-746 Head Cushion Foam Kit (for DSI 510-683 & DSI 510-754)
Misc
DSI 525-374 Zinc Anode Kit
DE 255-020 Bail-Out QD Whip, 42”, Brass (Single Shut-off)
DE 255-020DD Bail-Out QD Whip, 42”, Brass (Double Shut-off)
DE 255-025 Bail-Out QD Whip, 42”, S/S (Double Shut-off)
DSI 525-403 Weld Lens Ass’y (lens not included)
DSI 525-400 Weld Shield Ass’y (lens not included)
DSI 525-765 455 Regulator Conversion Kit
DSI 555-210 Restrictor Adaptor
DSI 200-017 Over Pressure Relief Valve, Hi-Flow
DSI 305-161 Superflow 1st Stage Regulator
DSI 525-112 Pull Pin Sleeve
DSI 525-620 Regulator Tool Kit (included with purchase of new helmet)
DSI 500-901 Helmet Bag (included with purchase of new helmet)
GL WZ239630 Helmet Pad
DSI 125-100 Logbook w/ Pen (included with purchase of new helmet)
DSI 525-100 Hot Water Shroud Kit
