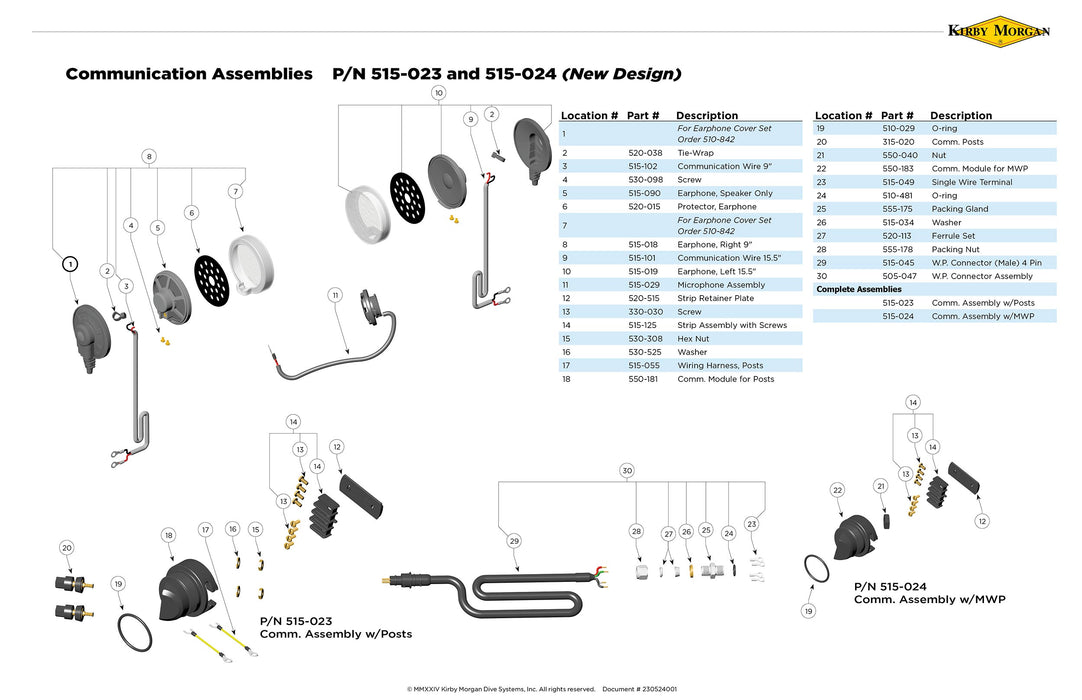

Communication Assemblies BlowApart

Name: Communication Assemblies BlowApart
Brand: Kirby Morgan
Availability: InStock

by Kirby Morgan

SKU

$0.00 USD - $0.00 USD

$0.00 USD

$0.00 USD - $0.00 USD

$0.00 USD

Click the corresponding item from the parts list below to order:

Location #	Part #	Description
1		For Earphone Cover Set Order DSI 510-842
2	DSI 520-038	Tie Wrap
3	DSI 515-102	Communication Wire, 9"
4	DSI 530-098	Screw
5	DSI 515-090	Earphone, Spearker Only
6	DSI 520-015	Protector, Earphone
7		For Earphone Cover Set Order DSI 510-842
8	DSI 515-018	Earphone, Right 9"
9	DSI 515-101	Communication Wire 15.5"
10	DSI 515-019	Earphone, Left 15.5"
11	DSI 515-029	Microphone Assembly
12	DSI 520-515	Strip Retainer Plate
13	DSI 330-030	Screw
14	DSI 515-125	Strip Assembly with Screws
15	DSI 530-308	Hex Nut
16	DSI 530-525	Washer
17	DSI 515-055	Wiring Harness, Posts
18	DSI 550-181	Comm. Module for Posts
19	DSI 510-029	O-ring
20	DSI 315-020	Comm. Posts
21	DSI 550-040	Nut
22	DSI 550-183	Comm. Module for MWP
23	DSI 515-049	Single Wire Terminal
24	DSI 510-481	O-ring
25	DSI 555-175	Packing Gland
26	DSI 520-113	Ferrule Set
27	DSI 555-178	Packing Nut
28	DSI 515-045	W.P. Connector (Male) 4-Pin
29	DSI 505-047	W.P. Connector Assembly
