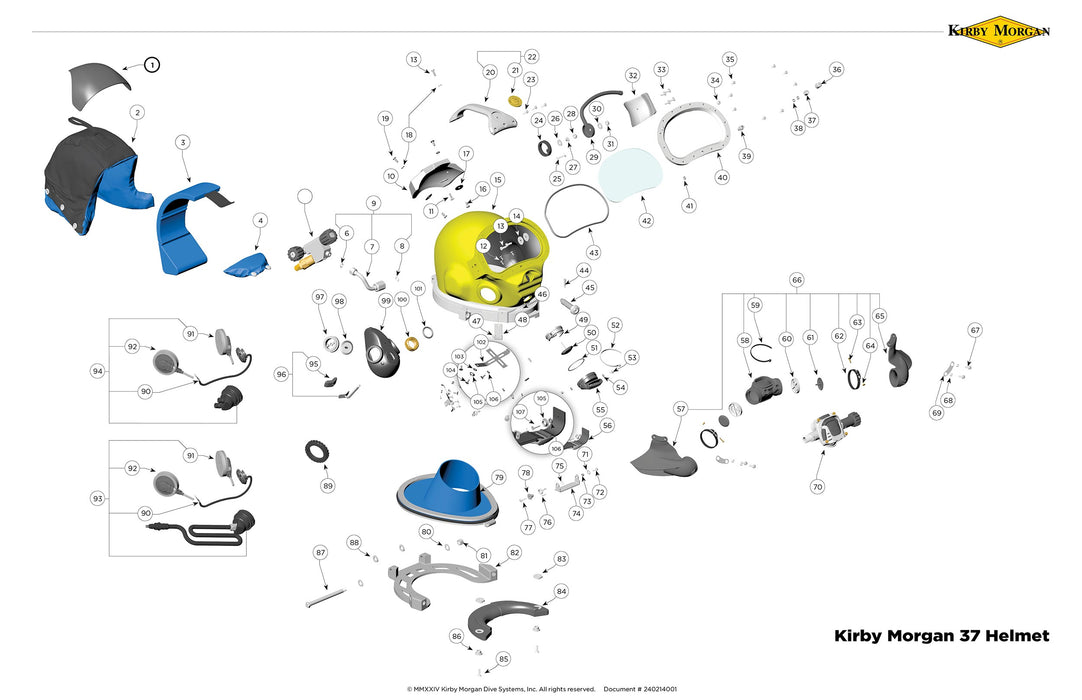

KM 37 Blowapart

Click the corresponding item from the parts list below to order:

560-195

Location #	Part #	Description
1	DSI 520-054	Visor
2	DSI 510-754	Head Cushion Assembly
	DSI 510-722	Head Cushion Bag
3	DSI 510-837	Head Cushion Foam Spacer Assembly (Order P/N DSI 525-745)
	DSI 510-836	Head Cushion Foam Spacer Bag
4	DSI 510-683	Chin Cushion Assembly
	DSI 510-639	Chin Cushion Bag
5	DSI 505-024	Side Block Assembly (B)
	DSI 505-025	Side Block Assembly (B), Brass
6	DSI 520-033	O-ring, Teflon®
7	DSI 555-154	Bent Tube Assembly, No O-rings (Purchase DSI 555-155)
8	DSI 510-012	O-ring
9	DSI 555-155	Bent Tube Assembly w/O-rings
10	DSI 560-125	Weight, Top
	DSI 560-116	Weight, Top Brass
11	DSI 530-070	Screw
12	DSI 530-032	Screw
13	DSI 530-070	Screw
14	DSI 530-540	Washer
15	DSI 505-107	Helmet Shell, 37 with Ring
16	DSI 530-078	Screw
17	DSI 530-540	Washer
18	DSI 530-527	Washer
19	DSI 530-078	Screw
20	DSI 560-133	Handle, 37
	DSI 560-136	Handle, Brass, 37
21	DSI 560-192	Plaque, 37
22	DSI 560-194	Handle with Plaque, 37
	DSI 560-195	Handle with Plaque, Brass 37
23	DSI 530-045	Screw
24	DSI 510-762	Air Train Gasket
25	DSI 530-050	Screw
26	DSI 530-535	Washer
27	DSI 530-415	Washer, Lock
28	DSI 530-317	Nut
29	DSI 545-016	Air Train
30	DSI 530-535	Washer
31	DSI 530-317	Nut
32	DSI 560-032	Weight, Port Side
	DSI 560-033	Weight, Port Side, Brass
33	DSI 530-062	Screw
34	DSI 530-052	Screw
35	DSI 530-035	Screw
36	DSI 550-062	Knob, Nose Block
	DSI 550-252	Knob, Nose Block, Brass
37	DSI 555-180	Packing Nut
	DSI 555-190	Packing Nut, Brass
38	DSI 510-008	O-ring
39	DSI 550-116	Nose Block Guide
	DSI 550-249	Nose Block Guide, Brass
40	DSI 560-070	Port Retainer, w/#39
	DSI 560-071	Port Retainer, Brass, w/#39 Brass
41	DSI 510-010	O-ring
42	DSI 520-004	Face Port
43	DSI 510-260	O-ring, View Port
44	DSI 530-015	Screw
45	DSI 505-110	Sealed Pull Pin
46	DSI 530-032	Screw
47	DSI 530-059	Screw
48	DSI 540-039	Front Stand Off, Purchase DSI 525-116
49	DSI 550-063	Body, Water Dump
50	DSI 510-561	Valve, Water Dump, Black
51	DSI 510-033	O-ring
52	DSI 520-042	Tie Wrap
53	DSI 530-019	Screw
54	DSI 510-007	O-ring
55	DSI 560-530	Cover, Water Dump Adapter
56	DSI 505-111	Chin Strap Assembly (Purchase DSI 525-716 Kit)
57	DSI 510-786	Starboard Whisker Wing
58	DSI 510-760	Quad Valve Exhaust Main Body
59	DSI 520-042	Tie Wrap
60	DSI 520-200	Whisker Exhaust Valve Insert
61	DSI 510-776	Exhaust Valve
62	DSI 520-118	Tri/Quad Valve Whisker Clamp
63	DSI 530-008	Brass Screw
64	DSI 530-009	Brass Nut
65	DSI 510-787	Port Whisker Wing
66	DSI 505-730	Quad Valve Exhaust Assembly
67	DSI 530-045	Screw
68	DSI 550-061	Spacer
69	DSI 540-015	Kidney Plate
70	DSI 505-455	455 Balanced Regulator, Order P/N DSI 525-765
71	DSI 530-546	Washer for Swing Catch
72	DSI 530-035	Screw
73	DSI 550-061	Spacer
74	DSI 540-086	Swing Catch
75	DSI 520-167	Teflon® Washer for Swing Catch
76	DSI 535-825	Spring, Swing Catch
77	DSI 530-045	Screw
78	DSI 550-122	Spring Spacer
79	DSI 505-746	Neck Ring Assembly, Neoprene, Med.
80	DSI 530-545	Washer
81	DSI 530-028	Lock Nut
82	DSI 560-111	Locking Collar
83	DSI 550-113	Adjustment Nut, Neck Pad
84	DSI 520-098	Neck Pad
85	DSI 530-064	Screw
86	DSI 550-045	T-Washer
87	DSI 530-027	Hinge Bolt
88	DSI 520-165	Washer
89	DSI 320-026	Comm. Mount Nut
90	DSI 515-029	Microphone Assembly
91	DSI 515-019	Earphone, Left, 15.5"
92	DSI 515-018	Earphone, Right, 9"
93	DSI 515-024	Comm. Assembly w/ MWP
94	DSI 515-023	Comm. Assembly w/Posts
95	DSI 510-575	Nose Block Pad
96	DSI 545-015	Nose Block Device, Includes location #95
97	DSI 520-020	Valve Body
98	DSI 510-550	Valve, Oral Nasal
99	DSI 510-747	Oral Nasal Mask
100	DSI 550-081	Nut, Regulator Mount
101	DSI 510-490	O-ring
102	DSI 540-054	Earphone Retainer
103	DSI 530-519	Washer
104	DSI 530-018	Screw
105	DSI 530-702	Snap
106	DSI 530-527	Washer
107	DSI 530-031	Screw
