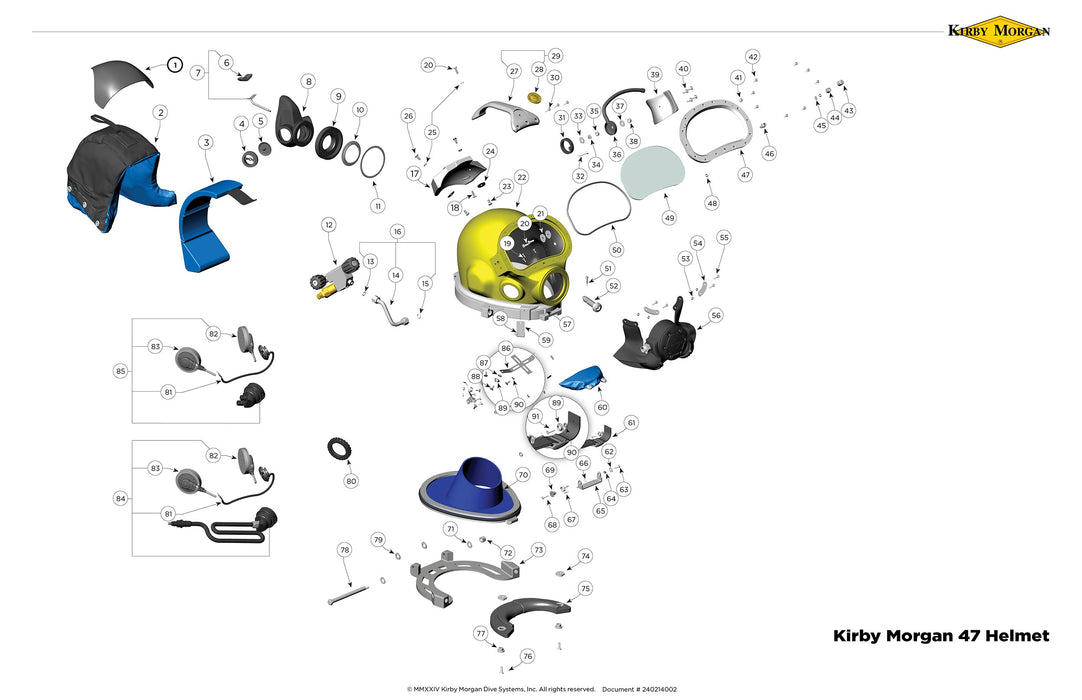

KM 47 Blowapart

Click the corresponding item from the parts list below to order:

DSI 560-187

Location #	Part #	Description
1	DSI 520-054	Visor
2	DSI 510-754	Head Cushion Assembly
	DSI 510-722	Head Cushion Bag
3	DSI 510-837	Head Cushion Foam Spacer Assembly (Order P/N DSI 525-745)
	DSI 510-836	Head Cushion Foam Spacer Bag
	DSI 510-639	Chin Cushion Bag
4	DSI 520-020	Valve Body
5	DSI 510-550	Valve, Oral Nasal
6	DSI 510-575	Nose Block Pad
7	DSI 545-015	Nose Block Device, Includes location #6
8	DSI 510-743	Oral Nasal Mask
9	DSI 550-372	Nut, Regulator Mount
10	DSI 510-741	Valve, Water Dump
11	DSI 320-040	Regulator Mount Washer
12	DSI 505-024	Side Block Assembly (B)
	DSI 505-025	Side Block Assembly (B), Brass
13	DSI 520-033	O-ring, Teflon®
14	DSI 555-167	47/77 Bent Tube
15	DSI 510-012	O-ring
16	DSI 555-168	Bent Tube Assembly w/O-rings
17	DSI 560-125	Weight, Top
	DSI 560-116	Weight, Top Brass
18	DSI 530-070	Screw
19	DSI 530-032	Screw
20	DSI 530-070	Screw
21	DSI 530-540	Washer
22	DSI 505-162	Helmet Shell, 47 with Ring
23	DSI 530-078	Screw
24	DSI 530-540	Washer
25	DSI 530-527	Washer
26	DSI 530-078	Screw
27	DSI 560-133	Handle, 47
	DSI 560-136	Handle, Brass, 47
28	DSI 560-173	Plaque, 47
29	DSI 560-186	Handle with Plaque, 47
		Handle with Plaque, Brass 47
30	DSI 530-045	Screw
31	DSI 510-762	Air Train Gasket
32	DSI 530-050	Screw
33	DSI 530-535	Washer
34	DSI 530-415	Washer, Lock
35	DSI 530-317	Nut
36	DSI 545-016	Air Train
37	DSI 530-535	Washer
38	DSI 530-317	Nut
39	DSI 560-032	Weight, Port Side
	DSI 560-033	Weight, Port Side, Brass
40	DSI 530-062	Screw
41	DSI 530-052	Screw
42	DSI 530-035	Screw
43	DSI 550-062	Knob, Nose Block
	DSI 550-252	Knob, Nose Block, Brass
44	DSI 555-180	Packing Nut
	DSI 555-190	Packing Nut, Brass
45	DSI 510-008	O-ring
46	DSI 550-116	Nose Block Guide
	DSI 550-249	Nose Block Guide, Brass
47	DSI 560-070	Port Retainer, w/#39
	DSI 560-071	Port Retainer, Brass, w/#39 Brass
48	DSI 510-010	O-ring
49	DSI 520-004	Face Port
50	DSI 510-260	O-ring, View Port
51	DSI 530-015	Screw
52	DSI 505-110	Sealed Pull Pin
53	DSI 550-061	Spacer
54	DSI 540-015	Kidney Plate
55	DSI 530-045	Screw
56	DSI 505-278	REX® Regulator Assembly, Purchase DSI 525-774 Kit
57	DSI 530-032	Screw
58	DSI 530-059	Screw
59	DSI 540-039	Front Stand Off, Purchase DSI 525-116
60	DSI 510-683	Chin Cushion Assembly
61	DSI 505-111	Chin Strap Assembly (Purchase DSI 525-716 Kit)
62	DSI 530-546	Washer for Swing Catch
63	DSI 530-035	Screw
64	DSI 550-061	Spacer
65	DSI 540-086	Swing Catch
66	DSI 520-167	Teflon® Washer for Swing Catch
67	DSI 535-825	Spring, Swing Catch
68	DSI 530-045	Screw
69	DSI 550-122	Spring Spacer
70	DSI 505-119	Neck Ring Assembly, Neoprene, Med.
71	DSI 530-545	Washer
72	DSI 530-028	Lock Nut
73	DSI 560-111	Locking Collar
74	DSI 550-113	Adjustment Nut, Neck Pad
75	DSI 520-098	Neck Pad
76	DSI 530-064	Screw
77	DSI 550-045	T-Washer
78	DSI 530-027	Hinge Bolt
79	DSI 520-165	Washer
80	DSI 320-026	Comm. Mount Nut
81	DSI 515-029	Microphone Assembly
82	DSI 515-019	Earphone, Left, 15.5"
83	DSI 515-018	Earphone, Right, 9"
84	DSI 515-024	Comm. Assembly w/ MWP
85	DSI 515-023	Comm. Assembly w/Posts
86	DSI 540-054	Earphone Retainer
87	DSI 530-519	Washer
88	DSI 530-018	Screw
89	DSI 530-702	Snap
90	DSI 530-527	Washer
91	DSI 530-031	Screw
