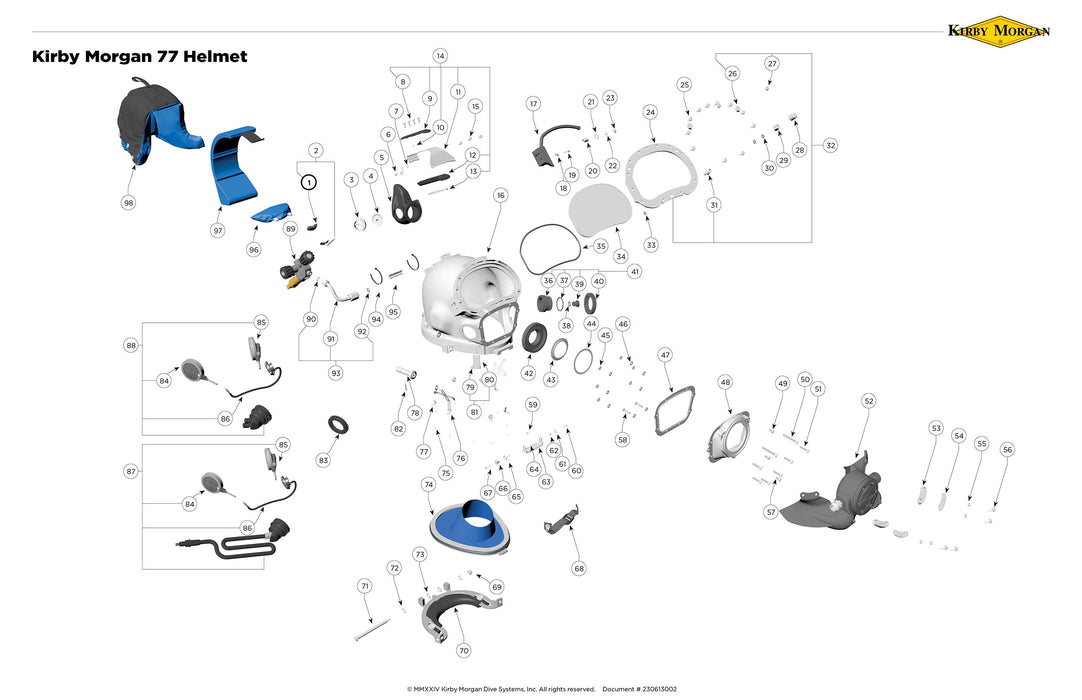

KM 77 Blowapart

Click the corresponding item from the parts list below to order:

Location #

Part #

Description

1 DSI 510-575 Nose Block Pad
2 DSI 545-015 Nose Block Device, Includes location #1
3 DSI 520-020 Valve Body
4 DSI 510-550 Valve, Oral Nasal
5 DSI 510-743 Oral Nasal Mask
6 DSI 530-058 Screw
7 DSI 330-405 Washer, Lock
8 DSI 540-569 Handle, Helmet, KM 77
9 DSI 530-059 Screw
10 DSI 510-795 Grip, Handle
11 DSI 430-075 Washer
12 DSI 530-052 Screw
13 DSI 505-759 Handle Assembly, KM 77
14 DSI 560-517 Helmet Shell, Stainless Steel
15 DSI 505-753 Airtrain Assembly, Stainless Helmet
16 DSI 550-571 Sleeve
17 DSI 530-083 Screw
18 DSI 550-574 Sleeve
19 DSI 530-535 Washer
20 DSI 530-415 Washer, Lock
21 DSI 530-317 Nut
22 DSI 540-563 Port Retainer
23 DSI 530-059 Screw
24 DSI 550-566 Adapter
25 DSI 530-052 Screw
26 DSI 550-062 Knob, Nose Block
27 DSI 555-180 Packing Nut
28 DSI 510-008 O-ring
29 DSI 550-577 Nose Block Guide
30 DSI 505-738 Port Retainer Assembly
31 DSI 510-010 O-ring
32 DSI 520-004 Face Port
33 DSI 510-260 O-ring, View Port
34 DSI 550-097 Large Port Plug Body
35 DSI 510-029 O-ring
36 DSI 510-481 O-ring
37 DSI 550-043 Plug
38 DSI 320-026 Comm. Mount Nut
39 DSI 505-089 Large Port Plug Assembly, Includes location #s 34-38
40 DSI 550-372 Regulator Mount Nut
41 DSI 510-741 Valve, Water Dump
42 DSI 320-040 Regulator Mount Washer
43 DSI 530-145 Nut
44 DSI 530-527 Washer
45 DSI 510-403 Gasket, Pod
46 DSI 560-516 Regulator Mount Pod
47 DSI 430-134 Washer
48 DSI 530-089 Screw
49 DSI 530-086 Screw
50 DSI 505-278 REX Regulator Assembly, Purchase DSI 525-774
51 DSI 560-300 Zinc Whisker Anode
52 DSI 540-015 Kidney Plate (pre-2013)
53 DSI 550-586 Spacer, Whisker
54 DSI 530-070 Screw
55 DSI 530-145 Lock Nut
56 DSI 530-086 Screw
57 DSI 530-032 Screw
58 DSI 530-035 Screw
59 DSI 530-546 Washer for Swing Catch
60 DSI 550-061 Spacer
61 DSI 540-086 Swing Catch
62 DSI 520-167 Teflon® Washer for Swing Catch
63 DSI 535-825 Spring, Swing Catch
64 DSI 550-122 Spring Spacer
65 DSI 530-045 Screw
66 DSI 505-748 Chin Strap Assembly w/ Snaps, SS
67 DSI 530-028 Lock Nut
68 DSI 505-755 Locking Collar Assembly, SS
69 DSI 530-027 Hinge Bolt
70 DSI 520-165 Washer
71 DSI 530-545 Washer
72 DSI 505-746 Neck RIng Assembly, Medium, SS
73 DSI 530-037 Screw
74 DSI 505-742 Earphone Retainer Assembly, SS
75 DSI 505-740 Snap Assembly, SS
76 DSI 505-110 Sealed Pull Pin Assembly
77 DSI 530-059 Screw
78 DSI 540-039 Front Stand Off, Order DSI 525-116
79 DSI 525-116 Front Stand Off Kit (2 each of Loc. #77 and 78)
80 DSI 530-015 Screw
81 DSI 320-026 Comm. Mount Nut
82 DSI 515-018 Earphone, Right, 9"
83 DSI 515-019 Earphone, Left, 15.5"
84 DSI 515-029 Microphone Assembly
85 DSI 515-024 Comm. Assembly w/ MWP
86 DSI 515-023 Comm. Assembly w/Posts
87 DSI 505-732 Side Block Assembly
88 DSI 520-033 O-ring, Teflon®
89 DSI 555-167 47/77 Bent Tube
90 DSI 510-012 O-ring
91 DSI 555-168 Bent Tube Assembly w/O-rings
92 DSI 520-038 Tie Wrap
93 DSI 560-304 Zinc Sleeve Anode
94 DSI 510-683 Chin Cushion Assembly
DSI 510-639 Chin Cushion Bag
95 DSI 510-837 Head Cushion Foam Spacer Assembly (Order P/N DSI 525-745)
DSI 510-836 Head Cushion Foam Spacer Bag
96 DSI 510-754 Head Cushion Assembly
DSI 510-722 Head Cushion Bag
