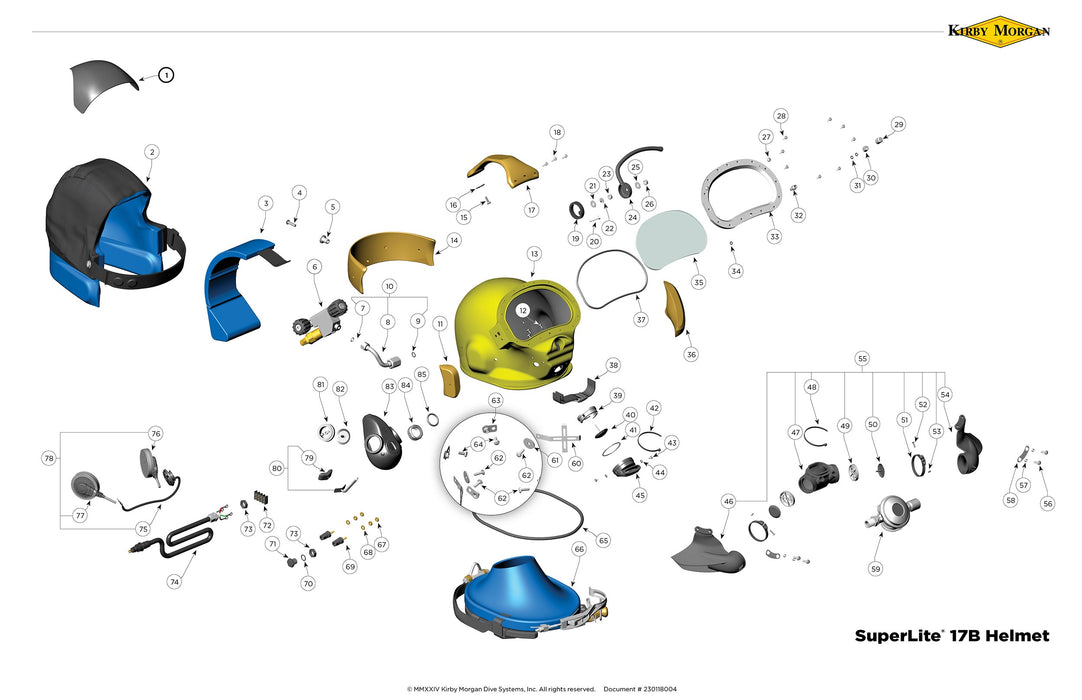

SL 17B Blowapart

Click the corresponding item from the parts list below to order:

Location #	Part #	Description
1	DSI 520-054	Visor
2	DSI 510-754	Head Cushion Assembly
	DSI 510-522	Head Cushion Bag
3	DSI 510-837	Head Cushion Foam Spacer Assembly (Order P/N DSI 525-745)
	DSI 510-836	Head Cushion Foam Spacer Bag
4	DSI 530-090	Alignment Screw
5	DSI 550-339	Alignment Sleeve
6	DSI 505-024	Side Block Assembly (B)
7	DSI 520-033	O-ring, Teflon®
8	DSI 555-154	Bent Tube Assembly, No O-rings (Purchase DSI 555-155)
9	DSI 510-012	O-ring
10	DSI 555-155	Bent Tube Assembly w/O-rings
11	DSI 560-023	Starboard Weight, SL 17A/B
	DSI 560-022	Starboard Weight, SL 17A/B, Chrome
12	DSI 530-032	Screw
13	DSI 520-065	Helmet Shell, SL 17B, Includes location #1
14	DSI 560-005	Rear Weight
	DSI 560-006	Rear Weight, Chrome
15	DSI 530-070	Screw
16	DSI 530-540	Washer
17	DSI 560-014	Handle, SL 17A/B
	DSI 560-015	Handle, SL 17A/B, Chrome
18	DSI 530-040	Screw
19	DSI 510-762	Air Train Gasket
20	DSI 530-050	Screw
21	DSI 530-535	Washer
22	DSI 530-415	Washer, Lock
23	DSI 530-317	Nut
24	DSI 545-016	Air Train
25	DSI 530-535	Washer
26	DSI 530-317	Nut
27	DSI 530-052	Screw
28	DSI 530-035	Screw
29	DSI 550-062	Knob, Nose Block
30	DSI 555-180	Packing Nut
31	DSI 510-008	O-ring
32	DSI 550-116	Nose Block Guide
33	DSI 560-070	Port Retainer, w/#32
34	DSI 510-010	O-ring
35	DSI 520-004	Face Port
36	DSI 560-019	Weight, Port, SL 17B
	DSI 560-018	Weight, Port, SL 17B, Chrome
37	DSI 510-260	O-ring, View Port
38	DSI 505-130	Chin Strap
39	DSI 550-063	Body, Water Dump
40	DSI 510-561	Valve, Water Dump, Black
41	DSI 510-033	O-ring
42	DSI 520-042	Tie Wrap
43	DSI 530-019	Screw
44	DSI 510-007	O-ring
45	DSI 560-530	Cover, Water Dump Adapter
46	DSI 510-786	Starboard Whisker Wing
47	DSI 510-760	Quad Valve Exhaust Main Body
48	DSI 520-042	Tie Wrap
49	DSI 520-200	Whisker Exhaust Valve Insert
50	DSI 510-776	Exhaust Valve
51	DSI 520-118	Tri/Quad Valve Whisker Clamp
52	DSI 530-008	Brass Screw
53	DSI 530-009	Brass Nut
54	DSI 510-787	Port Whisker Wing
55	DSI 505-730	Quad Valve Exhaust Assembly
56	DSI 530-045	Screw
57	DSI 550-061	Spacer
58	DSI 540-015	Kidney Plate
59	DSI 505-027	Demand Regulator Assembly "B", Purchase DSI 525-773 Kit
60	DSI 540-054	Earphone Retainer
61	DSI 530-540	Washer
62	DSI 530-070	Screw
63	DSI 545-027	Snap Tab
64	DSI 530-078	Screw
65	DSI 510-446	O-ring, SL 17A/B, Bottom
66	DSI 505-008	Neck Clamp/Yoke Assembly
67	DSI 530-308	Hex Nut
68	DSI 530-525	Washer
69	DSI 515-035	Communications Post
70	DSI 510-481	O-ring
71	DSI 550-043	Plug
72	DSI 515-062	Terminal Block, Order DSI 515-061
73	DSI 550-040	Nut
74	DSI 505-047	WP Connector Assembly
75	DSI 515-029	Microphone Assembly
76	DSI 515-019	Earphone, Left, 15.5"
77	DSI 515-018	Earphone, Right, 9"
78	DSI 515-033	Communications Set
79	DSI 510-575	Nose Block Pad
80	DSI 545-015	Nose Block Device, Includes location #79
81	DSI 520-020	Valve Body
82	DSI 510-550	Valve, Oral Nasal
83	DSI 510-747	Oral Nasal Mask
84	DSI 550-038	Nut, Regulator Mount
85	DSI 510-211	O-ring
