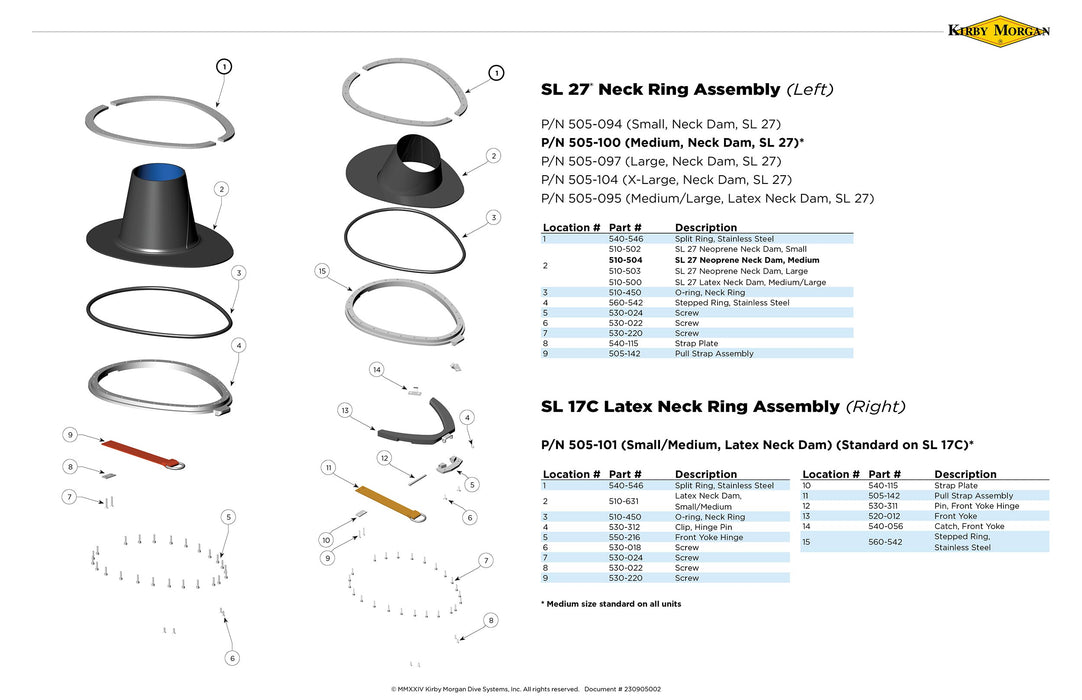

SL 17C and 27 Neck Ring Assemblies BlowApart

Click the corresponding item from the parts list below to order:

SL 27® Neck Ring Assembly (Left)

Location #

Part #

Description
1 DSI 540-546 Split Ring, Stainless Steel
2 DSI 510-502 SL 27 Neoprene Neck Dam, Small
2 DSI 510-504 SL 27 Neoprene Neck Dam, Medium
2 DSI 510-503 SL 27 Neoprene Neck Dam, Large
2 DSI 510-500 SL 27 Latex Neck Dam, M/L
3 DSI 510-450 O-ring, Neck Ring
4 DSI 560-542 Stepped Ring, Stainless Steel
5 DSI 530-024 Screw
6 DSI 530-022 Screw
7 DSI 530-220 Screw
8 DSI 540-115 Strap Plate
9 DSI 505-142 Pull Strap Assembly

SL 17C Latex Neck Ring Assembly (Right)

Location #

Part #

Description
1 DSI 540-546 Split Ring, Stainless Steel
2 DSI 510-631 Latex Neck Dam, S/M
3 DSI 510-450 O-ring, Neck Ring
4 DSI 530-312 Clip, Hinge Pin
5 DSI 550-216 Front Yoke Hinge
6 DSI 530-018 Screw
7 DSI 530-024 Screw
8 DSI 530-022 Screw
9 DSI 530-220 Screw
10 DSI 540-115 Strap Plate
11 DSI 505-142 Pull Strap Assembly
12 DSI 530-311 Pin, Front Yoke Hinge
13 DSI 520-012 Front Yoke
14 DSI 540-056 Catch, Front Yoke
15 DSI 560-542 Stepped Ring, Stainless Steel
