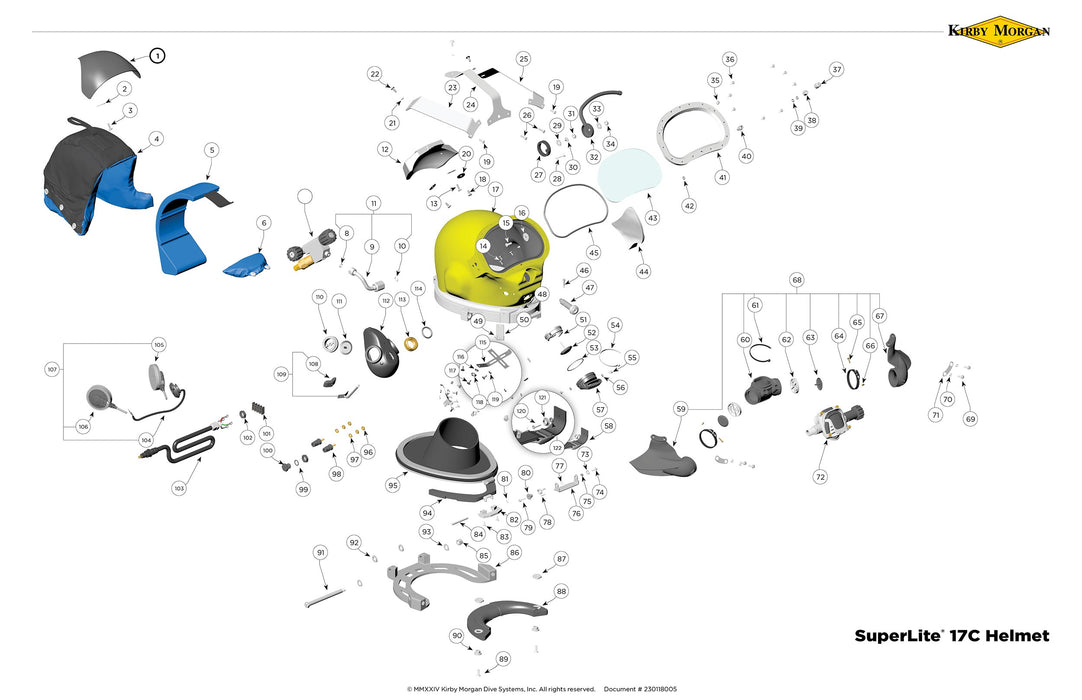

SL 17C Blowapart

Click the corresponding item from the parts list below to order:

Location #

Part #

Description

1 DSI 520-054 Visor
2 DSI 530-540 Washer
3 DSI 530-070 Screw
4 DSI 510-754 Head Cushion Assembly
DSI 510-722 Head Cushion Bag
5 DSI 510-837 Head Cushion Foam Spacer Assembly (Order P/N DSI 525-745)
DSI 510-836 Head Cushion Foam Spacer Bag
6 DSI 510-683 Chin Cushion Assembly
DSI 510-639 Chin Cushion Bag
7 DSI 505-024 Side Block Assembly (B)
8 DSI 520-033 O-ring, Teflon®
9 DSI 555-154 Bent Tube Assembly, No O-rings (Purchase DSI 555-155)
10 DSI 510-012 O-ring
11 DSI 555-155 Bent Tube Assembly w/O-rings
12 DSI 560-125 Weight, Top
13 DSI 530-070 Screw
14 DSI 530-035 Screw
15 DSI 530-070 Screw
16 DSI 530-540 Washer
17 DSI 505-106 Helmet Shell, 17C with Ring
18 DSI 530-078 Screw
19 DSI 530-040 Screw
20 DSI 530-540 Washer
21 DSI 530-406 Washer
22 DSI 530-062 Screw
23 DSI 540-132 Mount Bracket, Starboard Side
24 DSI 540-133 Handle, SL 17C
25 DSI 540-130 Mount Bracket, Port Side
26 DSI 530-045 Screw
27 DSI 510-762 Air Train Gasket
28 DSI 530-050 Screw
29 DSI 530-535 Washer
30 DSI 530-415 Washer, Lock
31 DSI 530-317 Nut
32 DSI 545-016 Air Train
33 DSI 530-535 Washer
34 DSI 530-317 Nut
35 DSI 530-052 Screw
36 DSI 530-035 Screw
37 DSI 550-062 Knob, Nose Block
38 DSI 555-180 Packing Nut
39 DSI 510-008 O-ring
40 DSI 550-116 Nose Block Guide
41 DSI 560-070 Port Retainer, w/#39
42 DSI 510-010 O-ring
43 DSI 520-004 Face Port
44 DSI 560-086 Weight, Port, SL 17C
45 DSI 510-260 O-ring, View Port
46 DSI 530-015 Screw
47 DSI 505-110 Sealed Pull Pin
48 DSI 530-032 Screw
49 DSI 530-059 Screw
50 DSI 540-039 Front Stand Off, Purchase DSI 525-116
51 DSI 550-063 Body, Water Dump
52 DSI 510-561 Valve, Water Dump, Black
53 DSI 510-033 O-ring
54 DSI 520-042 Tie Wrap
55 DSI 530-019 Screw
56 DSI 510-007 O-ring
57 DSI 560-530 Cover, Water Dump Adapter
58 DSI 505-111 Chin Strap Assembly (Purchase DSI 525-716 Kit)
59 DSI 510-786 Starboard Whisker Wing
60 DSI 510-760 Quad Valve Exhaust Main Body
61 DSI 520-042 Tie Wrap
62 DSI 520-200 Whisker Exhaust Valve Insert
63 DSI 510-776 Exhaust Valve
64 DSI 520-118 Tri/Quad Valve Whisker Clamp
65 DSI 530-008 Brass Screw
66 DSI 530-009 Brass Nut
67 DSI 510-787 Port Whisker Wing
68 DSI 505-730 Quad Valve Exhaust Assembly
69 DSI 530-045 Screw
70 DSI 550-061 Spacer
71 DSI 540-015 Kidney Plate
72 DSI 505-455 455 Balanced Regulator (Order P/N DSI 525-765)
73 DSI 530-546 Washer for Swing Catch
74 DSI 530-035 Screw
75 DSI 550-061 Spacer
76 DSI 540-086 Swing Catch
77 DSI 520-167 Teflon® Washer for Swing Catch
78 DSI 535-825 Spring, Swing Catch
79 DSI 530-045 Screw
80 DSI 550-122 Spring Spacer
81 DSI 530-312 Clip, Hinge Pin
82 DSI 550-216 Front Yoke Hinge
83 DSI 530-018 Screw
84 DSI 530-311 Pin, Front Yoke Hinge
85 DSI 530-028 Lock Nut
86 DSI 560-111 Locking Collar
87 DSI 550-113 Adjustment Nut, Neck Pad
88 DSI 520-098 Neck Pad
89 DSI 530-064 Screw
90 DSI 550-045 T-Washer
91 DSI 530-027 Hinge Bolt
92 DSI 520-165 Washer
93 DSI 530-545 Washer
94 DSI 520-012 Front Yoke
95 DSI 505-101 Neck Ring Assembly, Latex, Medium
96 DSI 530-308 Hex Nut
97 DSI 530-525 Washer
98 DSI 515-035 Communications Post
99 DSI 510-481 O-ring
100 DSI 550-043 Plug
101 DSI 515-062 Terminal Block, Order DSI 515-061
102 DSI 550-040 Nut
103 DSI 505-047 WP Connector Assembly
104 DSI 515-029 Microphone Assembly
105 DSI 515-019 Earphone, Left, 15.5"
106 DSI 515-018 Earphone, Right, 9"
107 DSI 515-033 Communications Set
108 DSI 510-575 Nose Block Pad
109 DSI 545-015 Nose Block Device, Includes location #108
110 DSI 520-020 Valve Body
111 DSI 510-550 Valve, Oral Nasal
112 DSI 510-747 Oral Nasal Mask
113 DSI 550-081 Nut, Regulator Mount
114 DSI 510-490 O-ring
115 DSI 540-054 Earphone Retainer
116 DSI 530-527 Washer
117 DSI 530-018 Screw
118 DSI 530-702 Snap
119 DSI 530-519 Washer
120 DSI 530-031 Screw
121 DSI 530-702 Snap
122 DSI 530-519 Washer
