SL 27 BlowApart

Name: SL 27 BlowApart
Brand: Kirby Morgan
Availability: InStock

by Kirby Morgan

SKU

$0.00 USD - $0.00 USD

$0.00 USD

$0.00 USD - $0.00 USD

$0.00 USD

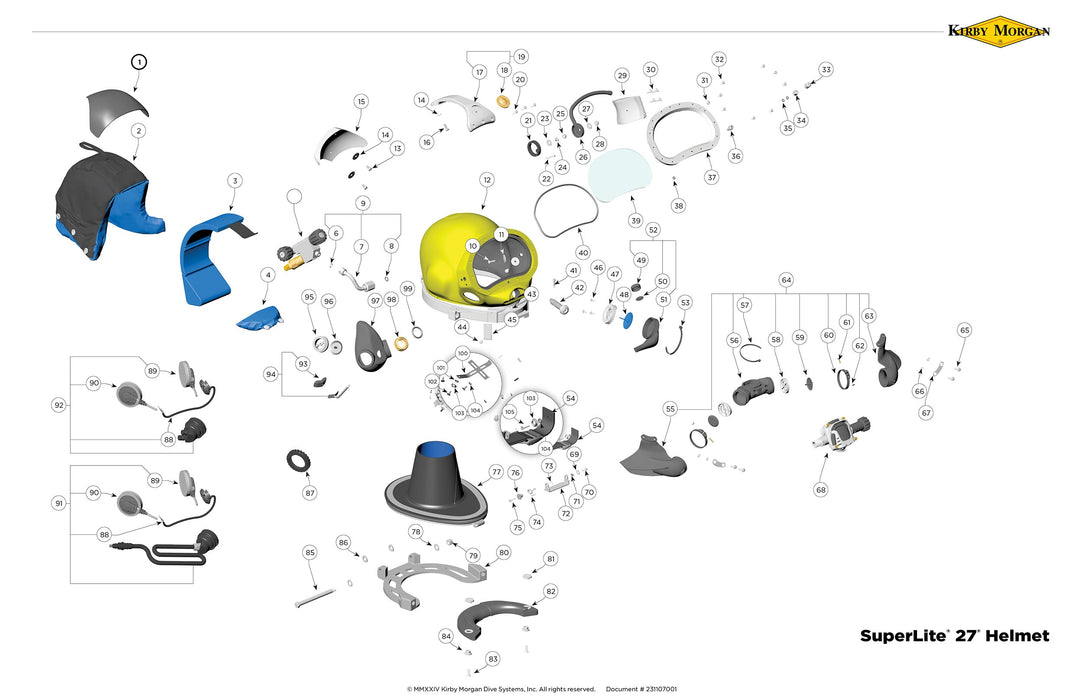

SL 27 Blowapart

Click the corresponding item from the parts list below to order:

Location #	Part #	Description
1	DSI 520-054	Visor
2	DSI 510-754	Head Cushion Assembly
	DSI 510-722	Head Cushion Bag
3	DSI 510-837	Head Cushion Foam Spacer Assembly (Order P/N DSI 525-745)
	DSI 510-836	Head Cushion Foam Spacer Bag
4	DSI 510-683	Chin Cushion Assembly
	DSI 510-639	Chin Cushion Bag
5	DSI 505-024	Side Block Assembly (B)
	DSI 505-025	Side Block Assembly (B), Brass
6	DSI 520-033	O-ring, Teflon®
7	DSI 555-154	Bent Tube Assembly, No O-rings (Purchase DSI 555-155)
8	DSI 510-012	O-ring
9	DSI 555-155	Bent Tube Assembly w/O-rings
10	DSI 530-070	Screw
11	DSI 530-540	Washer
12	DSI 505-105	Helmet Shell, SL 27 with Ring
13	DSI 530-078	Screw
14	DSI 530-540	Washer
15	DSI 525-225	Rear Weight, SL 27
16	DSI 530-070	Screw
17	DSI 560-108	Handle, SL 27, Order DSI 560-106
	DSI 560-107	Handle, Brass, SL 27
18	DSI 560-115	Plaque, SL 27
19	DSI 560-106	Handle with Plaque, SL 27
	DSI 560-105	Handle with Plaque, Brass, SL 27
20	DSI 530-045	Screw
21	DSI 510-762	Air Train Gasket
22	DSI 530-050	Screw
23	DSI 530-535	Washer
24	DSI 530-415	Washer, Lock
25	DSI 530-317	Nut
26	DSI 545-016	Air Train
27	DSI 530-535	Washer
28	DSI 530-317	Nut
29	DSI 560-081	Weight, Port Side, SL 27
	DSI 560-082	Weight, Port Side, Brass, SL 27
30	DSI 530-062	Screw
31	DSI 530-052	Screw
32	DSI 530-035	Screw
33	DSI 550-062	Knob, Nose Block
	DSI 550-252	Knob, Nose Block, Brass
34	DSI 555-180	Packing Nut
	DSI 555-190	Packing Nut, Brass
35	DSI 510-008	O-ring
36	DSI 550-116	Nose Block Guide
	DSI 550-249	Nose Block Guide, Brass
37	DSI 560-070	Port Retainer, w/#39
	DSI 560-071	Port Retainer, Brass, w/#39 Brass
38	DSI 510-010	O-ring
39	DSI 520-004	Face Port
40	DSI 510-260	O-ring, View Port
41	DSI 530-015	Screw
42	DSI 505-110	Sealed Pull Pin
43	DSI 530-032	Screw
44	DSI 530-059	Screw
45	DSI 540-039	Front Stand Off, Purchase DSI 525-116
46	DSI 530-032	Screw
47	DSI 550-350	Water Dump Body
48	DSI 510-557	Water Dump Valve, SL 27
49	DSI 810-025	Valve Purge
50	DSI 820-120	Valve Body, Purge
51	DSI 510-780	Water Purge Deflector
52	DSI 505-726	Water Purge Deflector Assembly
53	DSI 520-042	Tie Wrap
54	DSI 505-111	Chin Strap Assembly (Purchase DSI 525-716 Kit)
55	DSI 510-786	Starboard Whisker Wing
56	DSI 510-759	Tri Valve Exhaust Main Body
57	DSI 520-042	Tie Wrap
58	DSI 520-200	Whisker Exhaust Valve Insert
59	DSI 510-776	Exhaust Valve
60	DSI 520-118	Tri/Quad Valve Whisker Clamp
61	DSI 530-008	Brass Screw
62	DSI 530-009	Brass Nut
63	DSI 510-787	Port Whisker Wing
64	DSI 505-729	Tri Valve Assembly, SL 27
65	DSI 530-045	Screw
66	DSI 550-061	Spacer
67	DSI 540-015	Kidney Plate
68	DSI 505-455	455 Balanced Regulator (Order P/N DSI 525-765)
69	DSI 530-546	Washer for Swing Catch
70	DSI 530-035	Screw
71	DSI 550-061	Spacer
72	DSI 540-086	Swing Catch
73	DSI 520-167	Teflon® Washer for Swing Catch
74	DSI 535-825	Spring, Swing Catch
75	DSI 530-045	Screw
76	DSI 550-122	Spring Spacer
77	DSI 505-100	Neck Ring Assembly, SL 27 (Neoprene), Medium
78	DSI 530-545	Washer
79	DSI 530-028	Lock Nut
80	DSI 560-111	Locking Collar
81	DSI 550-113	Adjustment Nut, Neck Pad
82	DSI 520-156	Neck Pad, SL 27
83	DSI 530-064	Screw
84	DSI 550-045	T-Washer
85	DSI 530-027	Hinge Bolt
86	DSI 520-165	Washer
87	DSI 320-026	Comm. Mount Nut
88	DSI 515-029	Microphone Assembly
89	DSI 515-019	Earphone, Left, 15.5"
90	DSI 515-018	Earphone, Right, 9"
91	DSI 515-024	Comm. Assembly w/ MWP
92	DSI 515-023	Comm. Assembly w/Posts
93	DSI 510-575	Nose Block Pad
94	DSI 545-070	Nose Block, SL 27, Includes location #93
95	DSI 520-020	Valve Body
96	DSI 510-550	Valve, Oral Nasal
97	DSI 510-690	Oral Nasal Mask
	DSI 510-569	Oral Nasal Mask, Small
98	DSI 550-081	Nut, Regulator Mount
99	DSI 510-490	O-ring
100	DSI 540-054	Earphone Retainer
101	DSI 530-519	Washer
102	DSI 530-018	Screw
103	DSI 530-702	Snap
104	DSI 530-527	Washer
105	DSI 530-031	Screw
