Interior Plumbing Arrangement and Regulator Assembly BlowApart
Click the corresponding item from the parts list below to order:

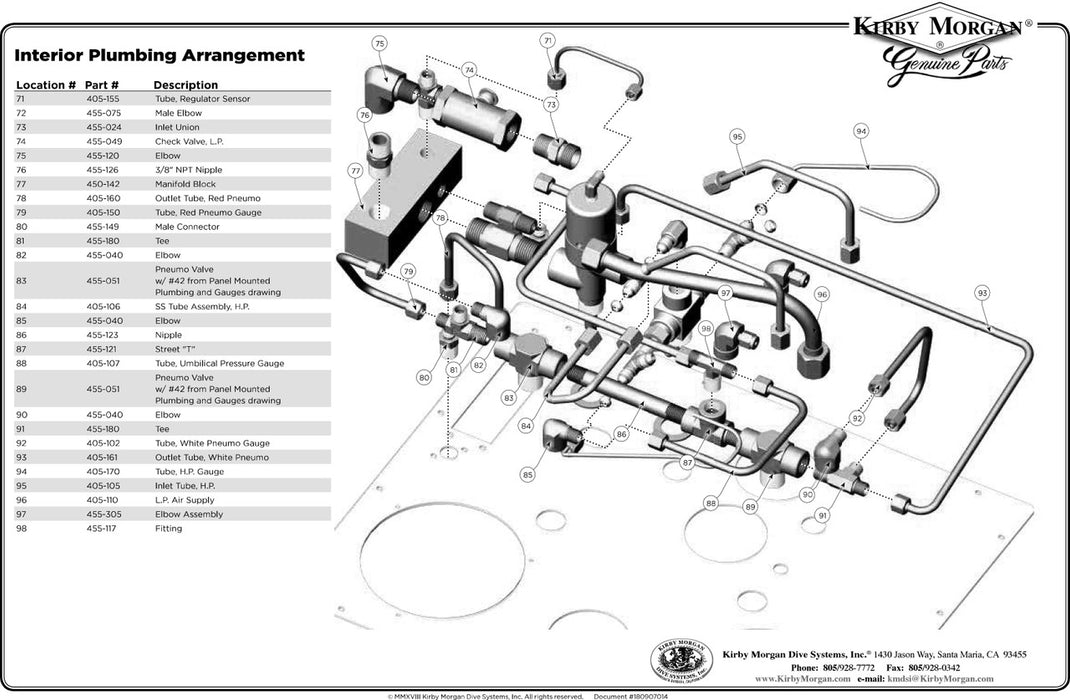

Interior Plumbing Arrangement
| 71 | DSI 405-155 | Tube, Regulator Sensor |
| 72 | DSI 455-075 | Male Elbow |
| 73 | DSI 455-024 | Inlet Union |
| 74 | DSI 455-049 | Check Valve, LP |
| 75 | DSI 455-120 | Elbow |
| 76 | DSI 455-126 | 3/8" NPT Nipple |
| 77 | DSI 450-142 | Manifold Block |
| 78 | DSI 405-160 | Outlet Tube, Red Pneumo |
| 79 | DSI 405-150 | Tube, Red Pneumo Gauge |
| 80 | DSI 455-149 | Male Connector |
| 81 | DSI 455-180 | Tee |
| 82 | DSI 455-040 | Elbow |
| 83 | DSI 455-051 | Pneumo Valve w/ #42 from Panel Mounted Plumbing and Gauges drawing |
| 84 | DSI 405-106 | SS Tube Assembly, HP |
| 85 | DSI 455-040 | Elbow |
| 86 | DSI 455-123 | Nipple |
| 87 | DSI 455-121 | Street "T" |
| 88 | DSI 405-107 | Tube, Umbilical Pressure Gauge |
| 89 | DSI 455-051 | Pneumo Valve w/ #42 from Panel Mounted Plumbing and Gauges drawing |
| 90 | DSI 455-040 | Elbow |
| 91 | DSI 455-180 | Tee |
| 92 | DSI 405-102 | Tube, White Pneumo Gauge |
| 93 | DSI 405-161 | Outlet Tube, White Pneumo |
| 94 | DSI 405-170 | Tube, HP Gauge |
| 95 | DSI 405-105 | Inlet Tube, HP |
| 96 | DSI 405-110 | LP Air Supply |
| 97 | DSI 455-305 | Elbow Assembly |
| 98 | DSI 455-117 | Fitting |
| 99 | DSI 405-105 | Inlet Tube, HP |
| 100 | DSI 455-135 | Conical Seal |
| 101 | DSI 455-032 | Outlet Elbow Fitting, SS |
| 102 | DSI 455-140 | Selector Valve Panel w/ #37 from Panel Mounted Plumbing and Gauges drawing |
| 103 | DSI 455-196 | Tee |
| 104 | DSI 430-120 | Washer |
| 105 | DSI 405-120 | Regulator Assembly |
| 106 | DSI 405-145 | Tube, Main Pneumo Supply |
| 107 | DSI 455-180 | Male Run Tee |
| 108 | DSI 455-130 | Check Valve LP |
| 109 | DSI 430-126 | Washer, Regulator Mount |
| 110 | DSI 455-047 | Overpressure Relief Valve |
| 111 | DSI 455-149 | Male Connector |
| 112 | DSI 350-062 | LP Plug, High-Flow |
| 113 | DSI 510-013 | O-ring |

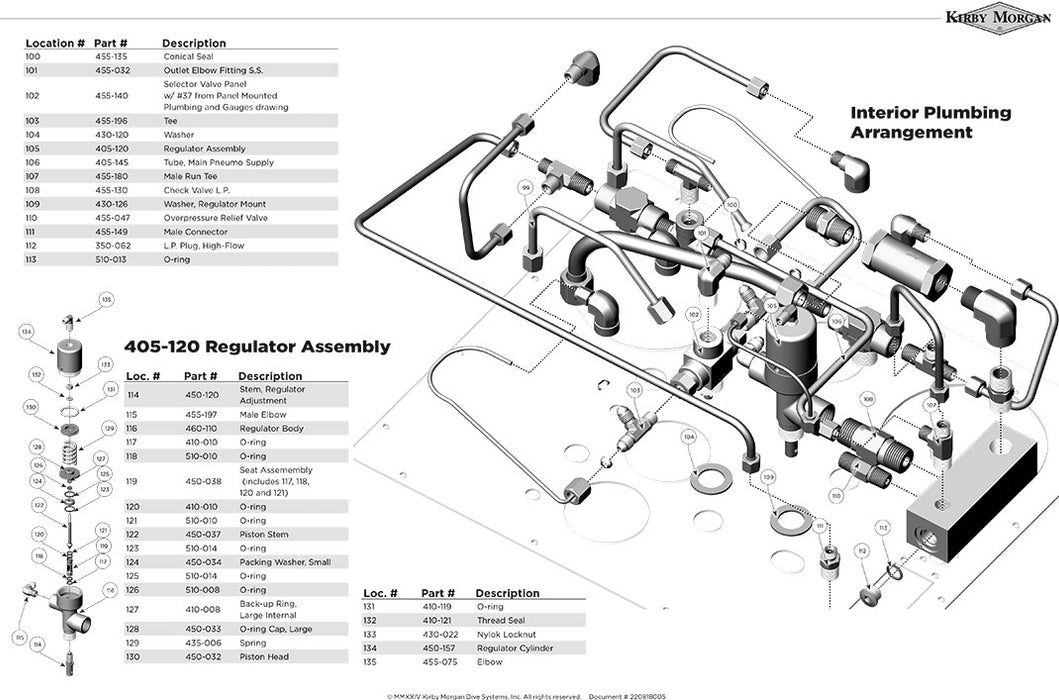

405-120 Regulator Assembly
| 114 | DSI 450-120 | Stem, Regulator Attachment |
| 115 | DSI 455-197 | Male Elbow |
| 116 | DSI 460-110 | Regulator Body |
| 117 | DSI 410-010 | O-ring |
| 118 | DSI 510-010 | O-ring |
| 119 | DSI 450-038 | Seat Assembly (includes 117, 118, 120 and 121) |
| 120 | DSI 410-010 | O-ring |
| 121 | DSI 510-010 | O-ring |
| 122 | DSI 450-037 | Piston Stem |
| 123 | DSI 510-014 | O-ring |
| 124 | DSI 450-034 | Packing Washer, Small |
| 125 | DSI 510-014 | O-ring |
| 126 | DSI 510-008 | O-ring |
| 127 | DSI 410-008 | Back-up Ring, Large Internal |
| 128 | DSI 450-033 | O-ring Cap, Large |
| 129 | DSI 435-006 | Spring |
| 130 | DSI 450-032 | Piston Head |
| 131 | DSI 410-119 | O-ring |
| 132 | DSI 410-121 | Thread Seal |
| 133 | DSI 430-022 | Nylok Locknut |
| 134 | DSI 450-157 | Regulator Cylinder |
| 135 | DSI 455-075 | Elbow |
