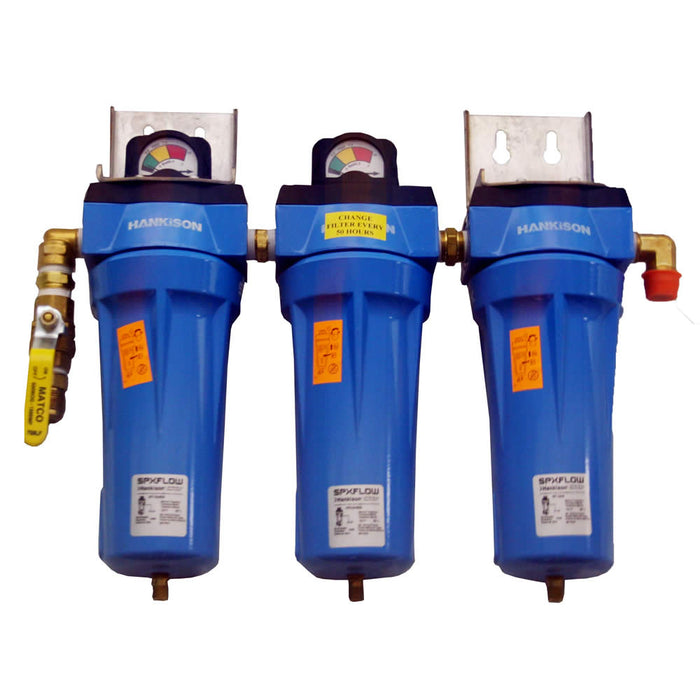

Three Stage SPX Hankison HF 24 Series Filter Package

SKU NU 6063.3
Original price $2,193.98 USD - Original price $2,193.98 USD
Original price
$2,193.98 USD
$2,193.98 USD - $2,193.98 USD
Current price $2,193.98 USD

The low pressure SPX Hankison HF 24 series filter package includes three stage filtration for up to 100 SCFM (2831 L/min) flow at 100 psi (7 bar). Comes equipped with a #12 SAE inlet fitting, on/off ball valve, and a #12 SAE fitting for a diver's hose. It is recommended for the Quincy 370 and Quincy 5120 compressor packages. When used properly this filter pack removes moisture, 99.9999+% of particles 0.01 micron or larger, and oil vapor down to <0.003 ppm/w. Various options available with this package at an additional cost.

Systems have a maximum operating pressure of 200 psi (14 bar).

E1-24 Element

∙ Removes 99.9999+% of solids 0.01 micron and larger
∙ Remaining oil content <0.003 ppm/w (as a vapor)

E5-24 Element

∙ 99.999+% of solids 0.01 micron and larger
∙ Remaining oil content <0.008 ppm/w

E7-24 Element

∙ Solids 1.0 micron and larger
∙ Remaining oil content 1 ppm/w

The low pressure SPX Hankison HF 24 series filter package includes three stage filtration for up to 100 SCFM (2831 L/min) flow at 100 psi (7 bar). Comes equipped with a #12 SAE inlet fitting, on/off ball valve, and a #12 SAE fitting for a diver's hose. It is recommended for the Quincy 370 and Quincy 5120 compressor packages. When used properly this filter pack removes moisture, 99.9999+% of particles 0.01 micron or larger, and oil vapor down to <0.003 ppm/w. Various options available with this package at an additional cost.

Systems have a maximum operating pressure of 200 psi (14 bar).
